UF2A SURFACE MOUNT ULTRA FAST RECTIFIER

UF2A Description

UF2A THRU UF2M SURFACE MOUNT ULTRA FAST RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Amperes DO-214AA 0.087 (2.20) 0.071 (1.80.

UF2A Applications

* Low reverse leakage Built-in strain relief,ideal for automated placement High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds at terminals Glass passivated chip junction MECHANICAL DATA Case: JEDEC DO-214AA molded plastic body over passivated chip Terminals:

📥 Download Datasheet

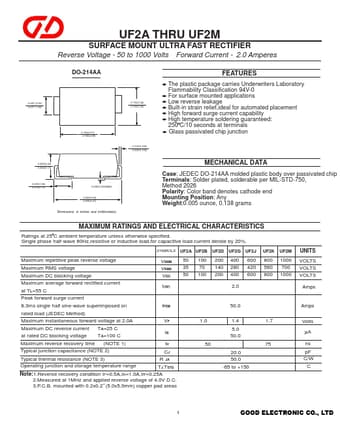

Preview of UF2A PDF
datasheet Preview Page 2

Datasheet Details

Part number
UF2A
Manufacturer
GOOD ELECTRONIC
File Size
147.30 KB
Datasheet
UF2A-GOODELECTRONIC.pdf
Description
SURFACE MOUNT ULTRA FAST RECTIFIER
