US1GB, US1AB SURFACE MOUNT ULTRA FAST RECTIFIER

US1GB Description

0.086(2.20) 0.075(1.91)) 0.096(2.44)) 0.084(2.13) 0.060(1.52) 0.030(0.76) US1AB THRU US1MB SURFACE MOUNT ULTRA FAST RECTIFIER Reverse Voltage - 50 t.

US1GB Features

* 0.155(3.94) 0.130(3.30) CATHODE 0.184(4.70) 0.160(4.06) 0.012(0.305) 0.006(0.152) 0.008(0.203) MAX.
* Fast switching speed
* Surface mount package ideally suited for automatic insertion
* Low power loss, high efficiency
* Pb free product : 99% Sn above can meet RoHS environment

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: US1GB, US1AB. Please refer to the document for exact specifications by model.

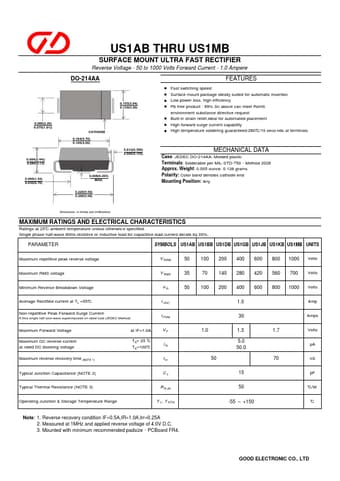

datasheet Preview Page 2

Datasheet Details

Part number
US1GB, US1AB
Manufacturer
GOOD ELECTRONIC
File Size
87.58 KB
Datasheet
US1AB-GOODELECTRONIC.pdf
Description
SURFACE MOUNT ULTRA FAST RECTIFIER
Note
This datasheet PDF includes multiple part numbers: US1GB, US1AB.
Please refer to the document for exact specifications by model.
