BAV99W - Switching Diode

Datasheet Summary

Features

Fast switching speed.
High conductance.
SOT-323 small package.
RoHS compliant.

GOODARK

📥 Download Datasheet

Datasheet Details

Part number	BAV99W
Manufacturer	GOODARK
File Size	640.70 KB
Description	Switching Diode
Datasheet	BAV99W Datasheet
Additional preview pages of the BAV99W datasheet.

📁 Similar Datasheet

BAV99W - FAST SWITCHING DIODE (SMC Diode)
BAV99W - SURFACE MOUNT FAST SWITCHING DIODE (Sunmate)
BAV99W - Switching Diodes (Toshiba)
BAV99W - Switching Diode Array (Taiwan Semiconductor)
BAV99W - Silicon Switching Diode (Infineon)
BAV99W - SWITCHING DIODE (Rectron)
BAV99W - SURFACE MOUNT SWITCHING DIODES (PANJIT)
BAV99W - Surface Mount Small Signal Double-Diodes (Diotec)
BAV99W - DUAL SURFACE MOUNT SWITCHING DIODE (Diodes)
BAV99W - High-speed switching diodes (nexperia)

Other Datasheets by GOODARK

Full PDF Text Transcription

Click to expand full text

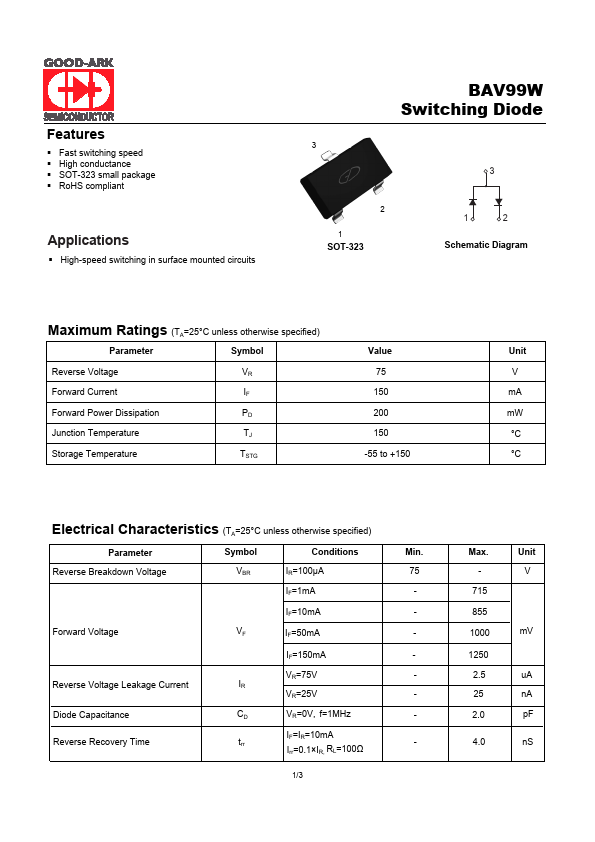

Features  Fast switching speed  High conductance  SOT-323 small package  RoHS compliant Applications  High-speed switching in surface mounted circuits BAV99W Switching Diode 3 3 2 1 SOT-323 1 2 Schematic Diagram Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Reverse Voltage VR Forward Current IF Forward Power Dissipation PD Junction Temperature TJ Storage Temperature TSTG Value 75 150 200 150 -55 to +150 Unit V mA mW °C °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Symbol Conditions Min.
