DB101S Miniature Glass Passivated Single-Phase Bridge Rectifiers

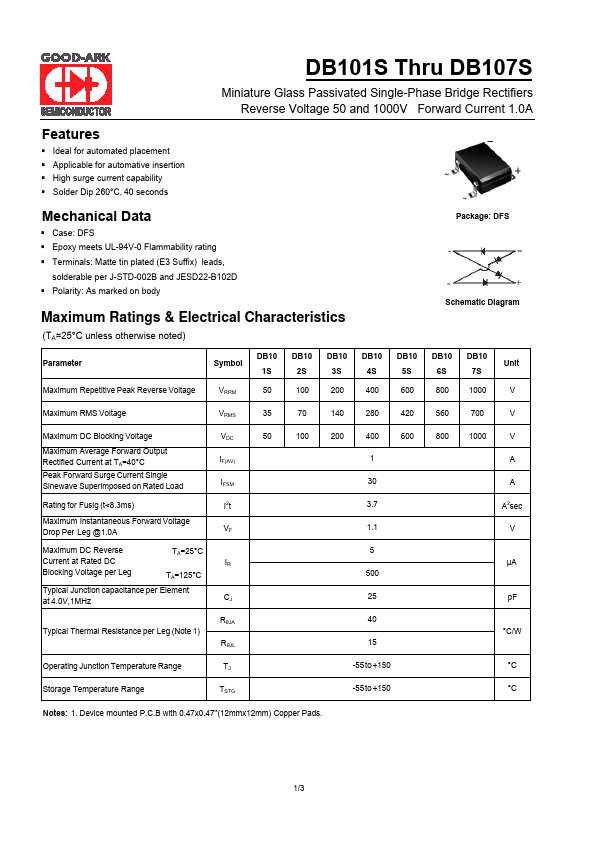

📥 Download Datasheet Datasheet Preview Page 1

Description

DB101S Thru DB107S Miniature Glass Passivated Single-Phase Bridge Rectifiers Reverse Voltage 50 and 1000V Forward Current 1.0A .

📥 Download Datasheet

Preview of DB101S PDF

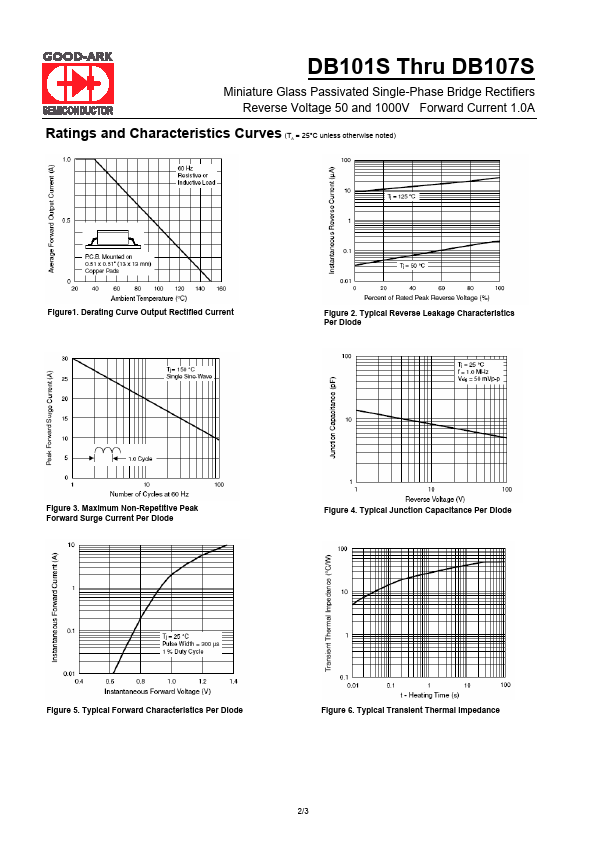

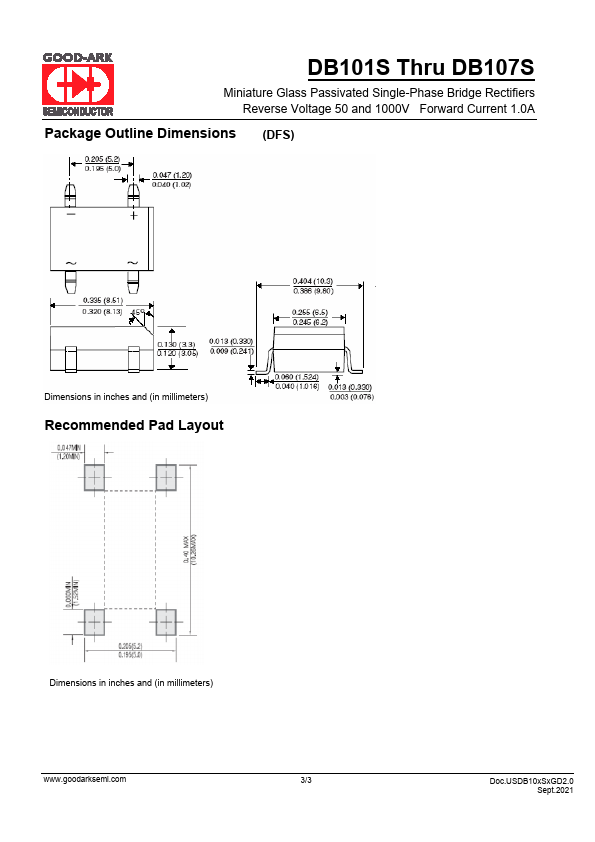

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DB101S
Manufacturer
GOODARK
File Size
339.93 KB
Datasheet
DB101S-GOODARK.pdf
Description
Miniature Glass Passivated Single-Phase Bridge Rectifiers

Features

* Ideal for automated placement
* Applicable for automative insertion
* High surge current capability
* Solder Dip 260°C,40 seconds Mechanical Data
* Case: DFS
* Epoxy meets UL-94V-0 Flammability rating
* Terminals: Matte tin plated (E3 Suffix) leads, solderable per J-ST
