DB104S, DB101S, Miniature Glass Passivated Single-Phase Bridge Rectifiers

DB101S Thru DB107S Miniature Glass Passivated Single-Phase Bridge Rectifiers Reverse Voltage 50 and 1000V Forward Current 1.0A .

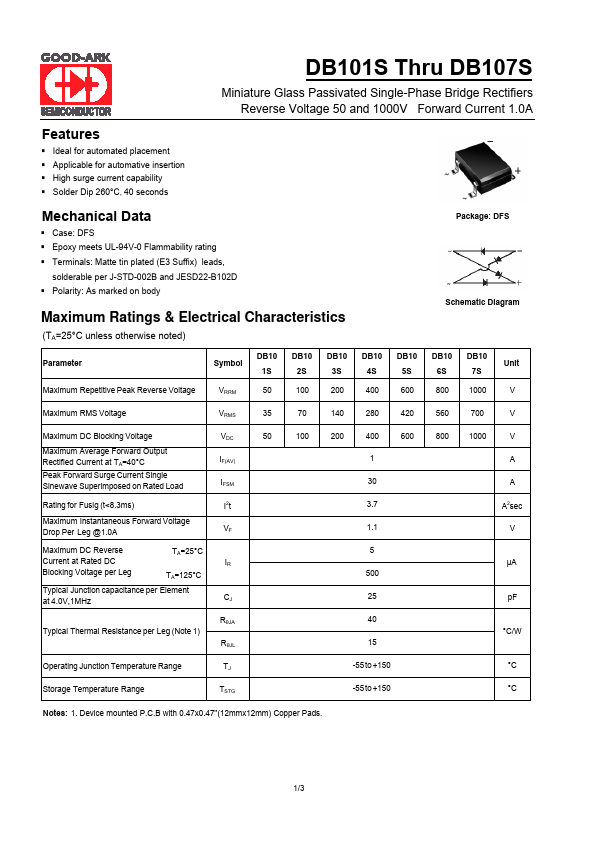

datasheet Preview Page 1 from Datasheet4u.com

DB101S-GOODARK.pdf

DB104S Datasheet Preview — This datasheet PDF includes multiple part numbers: DB104S, DB101S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DB104S, DB101S

Manufacturer:

GOODARK

File Size:

339.93 KB

Description:

Miniature Glass Passivated Single-Phase Bridge Rectifiers

Note:

This datasheet PDF includes multiple part numbers: DB104S, DB101S.
Please refer to the document for exact specifications by model.

Features

* Ideal for automated placement
* Applicable for automative insertion
* High surge current capability
* Solder Dip 260°C,40 seconds Mechanical Data

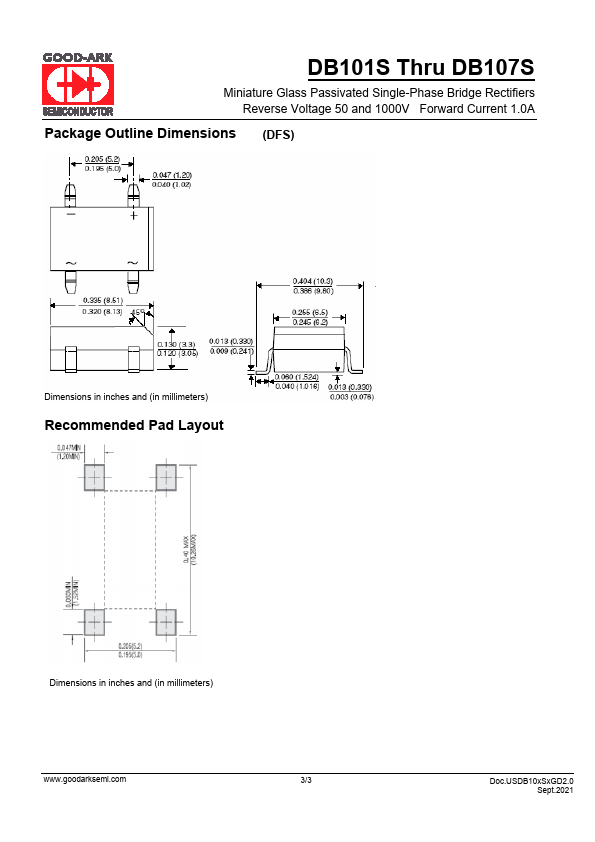

* Case: DFS
* Epoxy meets UL-94V-0 Flammability rating
* Terminals: Matte tin plated (E3 Suffix) leads, solderable per J-ST
