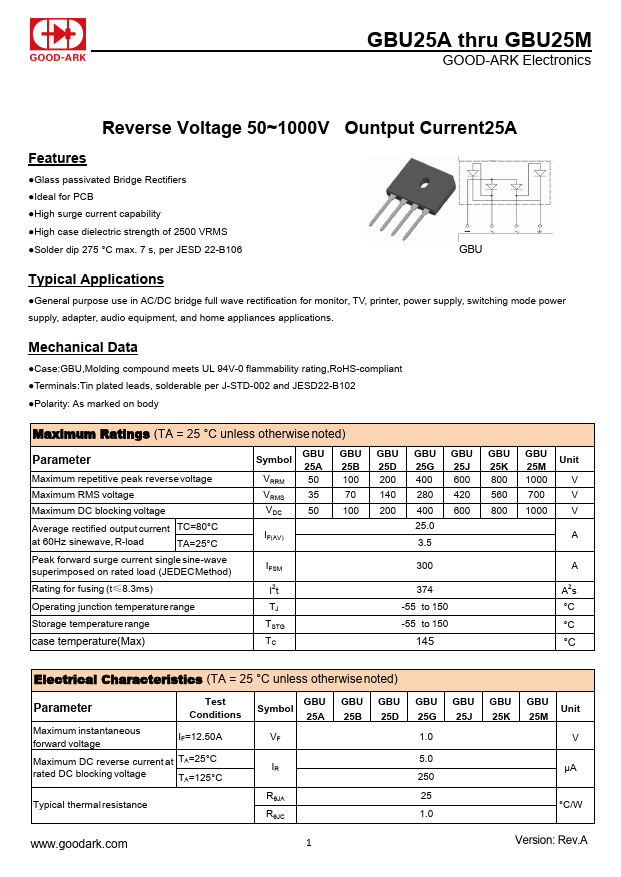

GBU25A
Features
- Glass passivated Bridge Rectifiers
- Ideal for PCB
- High surge current capability
- High case dielectric strength of 2500 VRMS
- Solder dip 275 °C max. 7 s, per JESD 22-B106
Typical Applications
- General purpose use in AC/DC bridge full wave rectification for monitor, TV, printer, power supply, switching mode power supply, adapter, audio equipment, and home appliances applications.
Mechanical Data

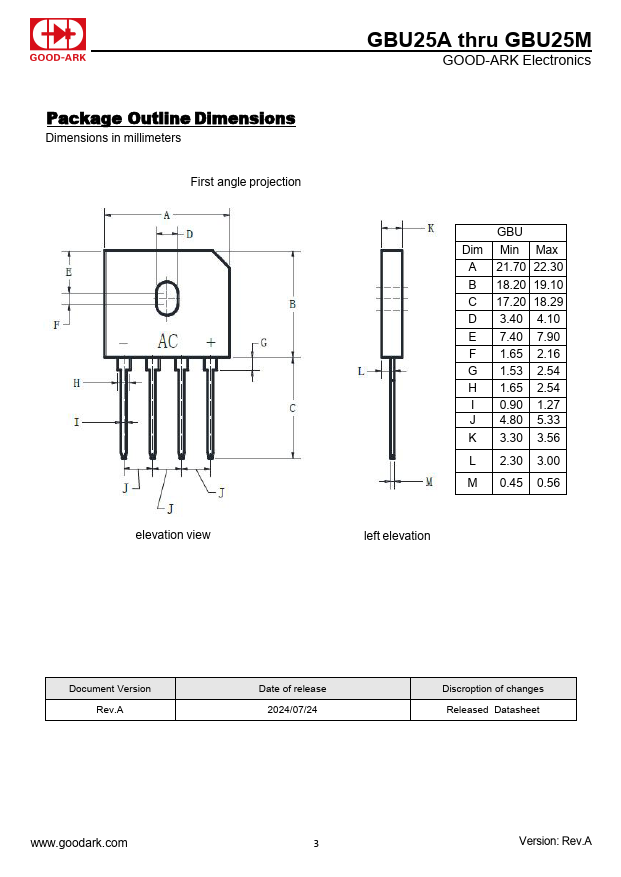

- Case:GBU,Molding pound meets UL 94V-0 flammability rating,Ro HS-pliant
- Terminals:Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: As marked on body

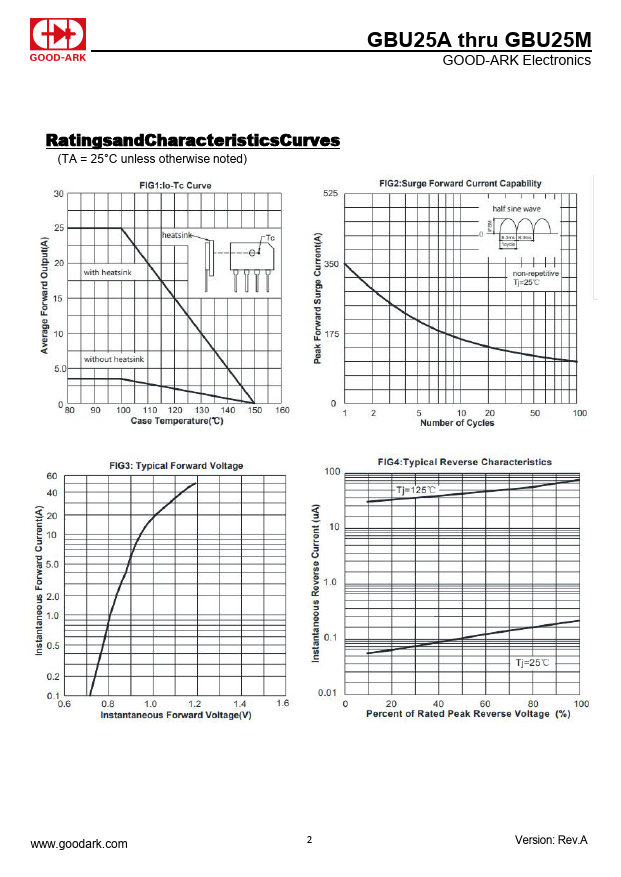

Maximum Ratings (TA = 25 °C unless otherwise noted)
Parameter
Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage
Average rectified output current TC=80°C at 60Hz sinewave, R-load
TA=25°C
Peak forward surge current single sine-wave superimposed on rated load (JEDECMethod)
Rating for fusing (t≤8.3ms)
Operating junction temperaturerange
Storage temperature range case...
