GBU25B, GBU25A Glass passivated Bridge Rectifiers

GOODARK

Description

GBU25A thru GBU25M GOOD-ARK Electronics Reverse Voltage 50~1000V Ountput Current25A .

📥 Download Datasheet

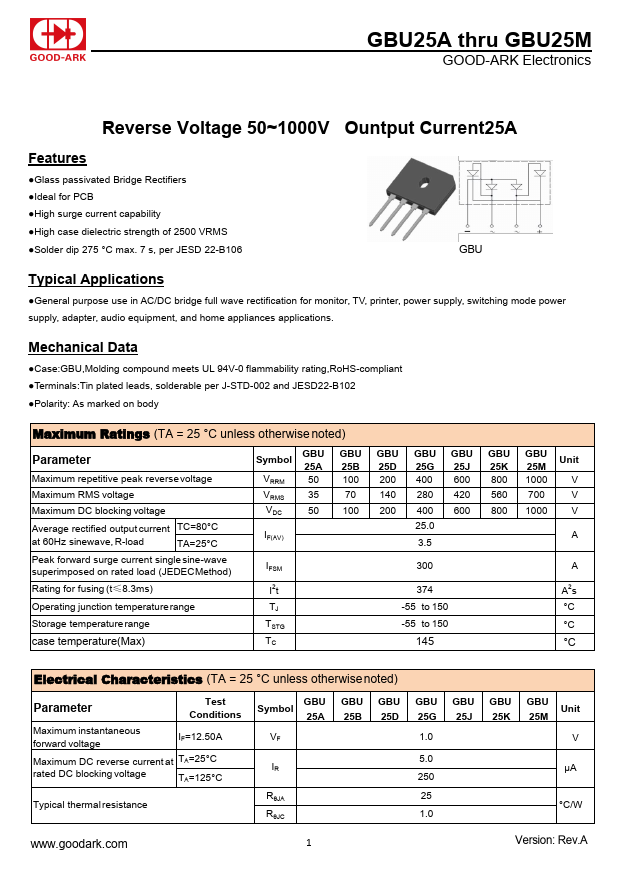

GBU25B Datasheet Preview — This datasheet PDF includes multiple part numbers: GBU25B, GBU25A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GBU25B, GBU25A
Manufacturer: GOODARK
File Size: 412.25 KB
Datasheet: GBU25A-GOODARK.pdf
Description: Glass passivated Bridge Rectifiers
Note: This datasheet PDF includes multiple part numbers: GBU25B, GBU25A.
Please refer to the document for exact specifications by model.

Features

* Glass passivated Bridge Rectifiers
* Ideal for PCB
* High surge current capability
* High case dielectric strength of 2500 VRMS

Applications

* General purpose use in AC/DC bridge full wave rectification for monitor, TV, printer, power supply, switching mode power supply, adapter, audio equipment, and home appliances applications. Mechanical Data
* Case:GBU,Molding compound meets UL 94V-0 flammability rating,RoHS-compliant
* Term
