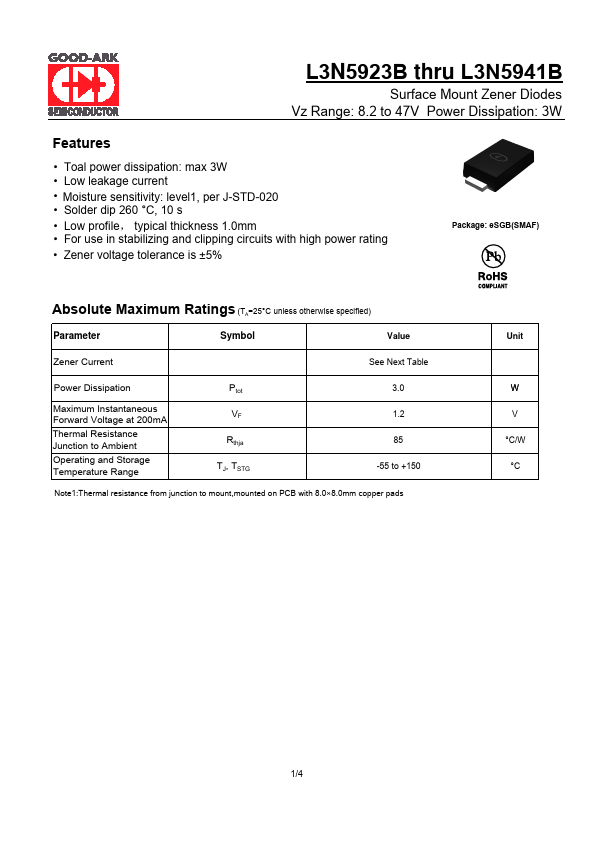

L3N5923B
Features
- Toal power dissipation: max 3W
- Low leakage current
- Moisture sensitivity: level1, per J-STD-020
- Solder dip 260 °C, 10 s
- Low profile， typical thickness 1.0mm
- For use in stabilizing and clipping circuits with high power rating
- Zener voltage tolerance is ±5%
Package: e SGB(SMAF)
Absolute Maximum Ratings (TA=25°C unless otherwise specified)
Parameter
Symbol
Value
Zener Current
See Next Table
Power Dissipation
Maximum Instantaneous Forward Voltage at 200m A Thermal Resistance Junction to Ambient Operating and Storage Temperature Range
Ptot VF Rthja TJ, TSTG
3.0 1.2 85 -55 to +150
Note1:Thermal resistance from junction to mount,mounted on PCB with 8.0×8.0mm copper pads
Unit
W V °C/W °C
1/4
L3N5923B thru L3N5941B
Surface Mount Zener Diodes Vz Range: 8.2 to 47V Power Dissipation: 3W
Electrical Characteristics (TA = 25 °C unless otherwise noted)
Part Number
L3N5923B L3N5924B L3N5925B L3N5926B L3N5927B L3N5928B L3N5929B L3N5930B L3N5931B L3N5932B L3N5933B...
