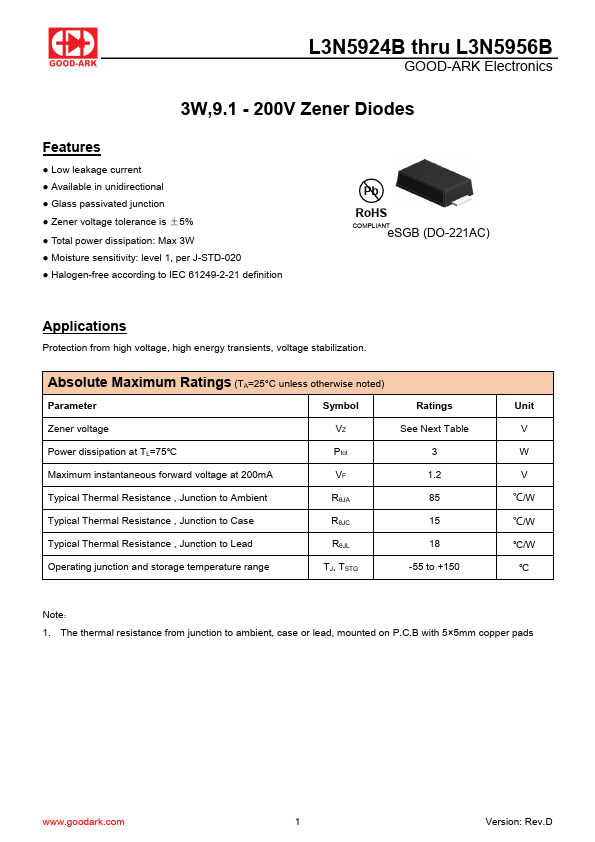

L3N5930B
Features
- Low leakage current
- Available in unidirectional
- Glass passivated junction
- Zener voltage tolerance is ±5%
- Total power dissipation: Max 3W
- Moisture sensitivity: level 1, per J-STD-020
- Halogen-free according to IEC 61249-2-21 definition
Pb
Ro HS
PLIANT e SGB (DO-221AC)
Applications
Protection from high voltage, high energy transients, voltage stabilization.
Absolute Maximum Ratings (TA=25°C unless otherwise noted)
Parameter
Symbol
Ratings
Zener voltage
See Next Table
Power dissipation at TL=75℃
Ptot
Maximum instantaneous forward voltage at 200m A
Typical Thermal Resistance , Junction to Ambient
RθJA
Typical Thermal Resistance , Junction to Case
RθJC
Typical Thermal Resistance , Junction to Lead
RθJL
Operating junction and storage temperature range
TJ, TSTG
-55 to +150
Unit V W V
℃/W ℃/W...
