L3N5943B, L3N5924B - 3W Zener Diode

L3N5943B Description

L3N5924B thru L3N5956B GOOD-ARK Electronics 3W,9.1 - 200V Zener Diodes .
of changes Released Datasheet Modify document format Update product range Modify package name www.

L3N5943B Features

* Low leakage current
* Available in unidirectional
* Glass passivated junction
* Zener voltage tolerance is ±5%
* Total power dissipation: Max 3W
* Moisture sensitivity: level 1, per J-STD-020
* Halogen-free according to IEC 61249-2-21 definition Pb RoHS COMPLIANT eSGB

L3N5943B Applications

* Protection from high voltage, high energy transients, voltage stabilization. Absolute Maximum Ratings (TA=25°C unless otherwise noted) Parameter Symbol Ratings Zener voltage VZ See Next Table Power dissipation at TL=75℃ Ptot 3 Maximum instantaneous forward voltage at 200mA VF 1.2 Typic

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: L3N5943B, L3N5924B. Please refer to the document for exact specifications by model.

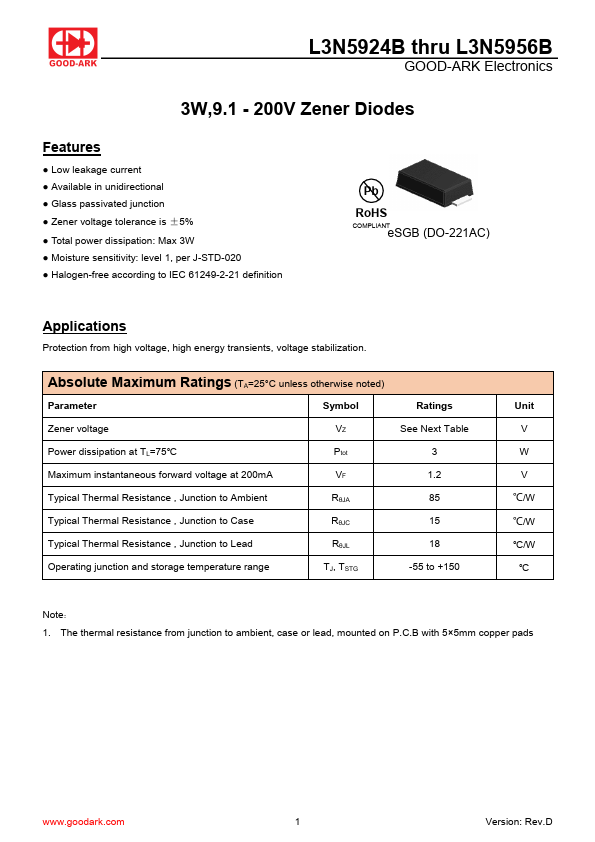

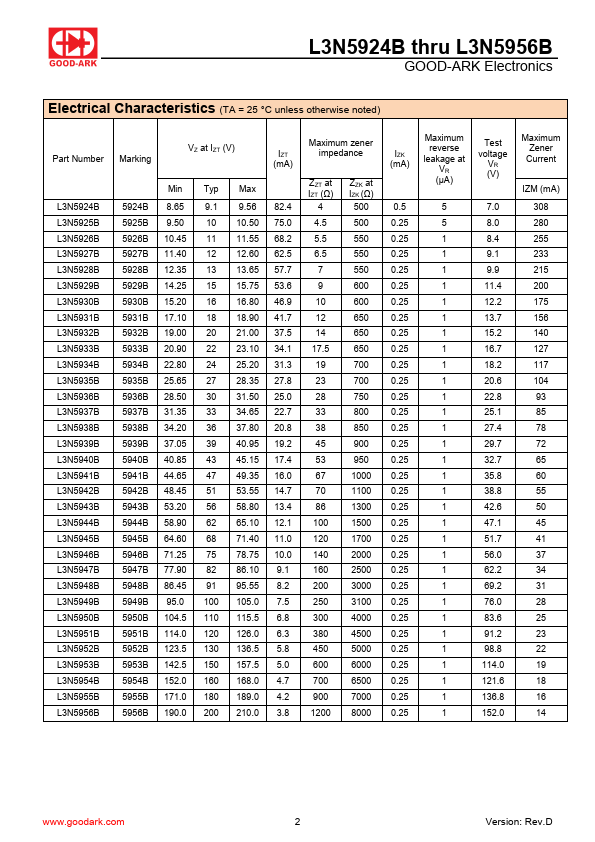

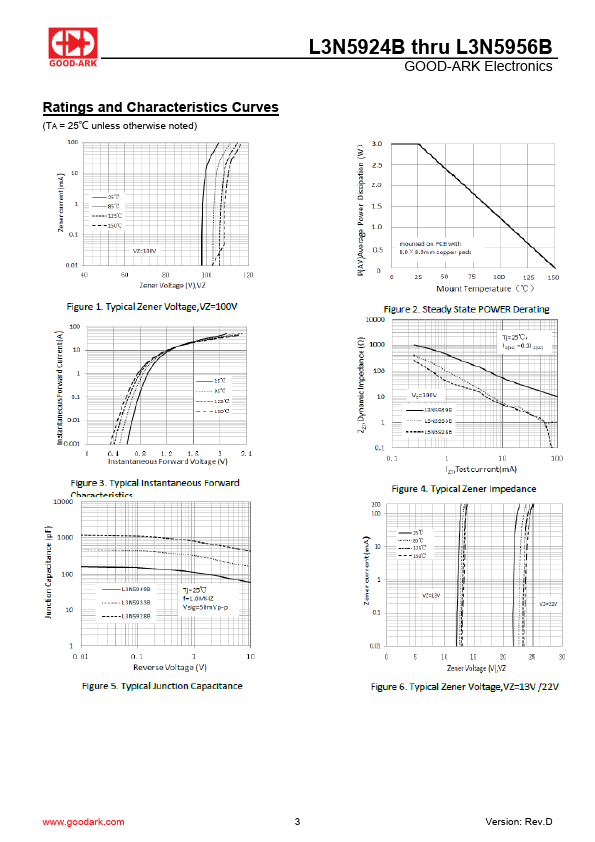

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
L3N5943B, L3N5924B
Manufacturer
GOODARK
File Size
621.89 KB
Datasheet
L3N5924B-GOODARK.pdf
Description
3W Zener Diode
Note
This datasheet PDF includes multiple part numbers: L3N5943B, L3N5924B.
Please refer to the document for exact specifications by model.
