L3N5952B, L3N5924B 3W Zener Diode

GOODARK

Description

L3N5924B thru L3N5956B GOOD-ARK Electronics 3W,9.1 - 200V Zener Diodes .
of changes Released Datasheet Modify document format Update product range Modify package name www.

📥 Download Datasheet

L3N5952B Datasheet Preview — This datasheet PDF includes multiple part numbers: L3N5952B, L3N5924B. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: L3N5952B, L3N5924B
Manufacturer: GOODARK
File Size: 621.89 KB
Datasheet: L3N5924B-GOODARK.pdf
Description: 3W Zener Diode
Note: This datasheet PDF includes multiple part numbers: L3N5952B, L3N5924B.
Please refer to the document for exact specifications by model.

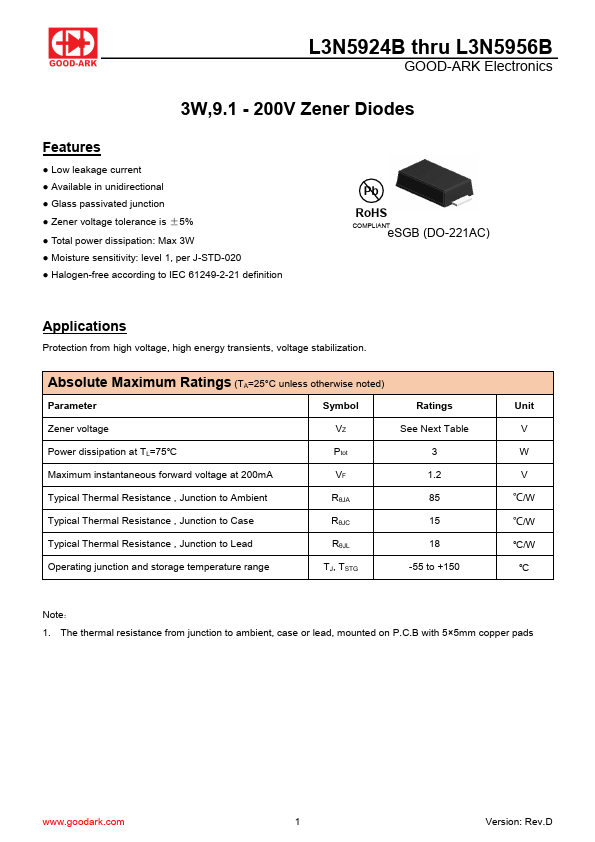

Features

* Low leakage current
* Available in unidirectional
* Glass passivated junction
* Zener voltage tolerance is ±5%
* Total power dissipation: Max 3W
* Moisture sensitivity: level 1, per J-STD-020
* Halogen-free according to IEC 61249-2-21 definition Pb RoHS COMPLIANT eSGB

Applications

* Protection from high voltage, high energy transients, voltage stabilization. Absolute Maximum Ratings (TA=25°C unless otherwise noted) Parameter Symbol Ratings Zener voltage VZ See Next Table Power dissipation at TL=75℃ Ptot 3 Maximum instantaneous forward voltage at 200mA VF 1.2 Typic
