LB2S - Low Profile Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier

LB2S Description

.

LB2S Features

* Low Profile: Typical height of 1.4mm
* Ideal for automated placement
* High surge current capability
* Solder Dip 260℃，10seconds Mechanical Data
* Case:SOPA-4 Epoxy meets UL-94V-0 Flammability rating
* Terminals:Matte tin plated ldads, solderable per J-STD-002B and JESD22-B

📥 Download Datasheet

Preview of LB2S PDF

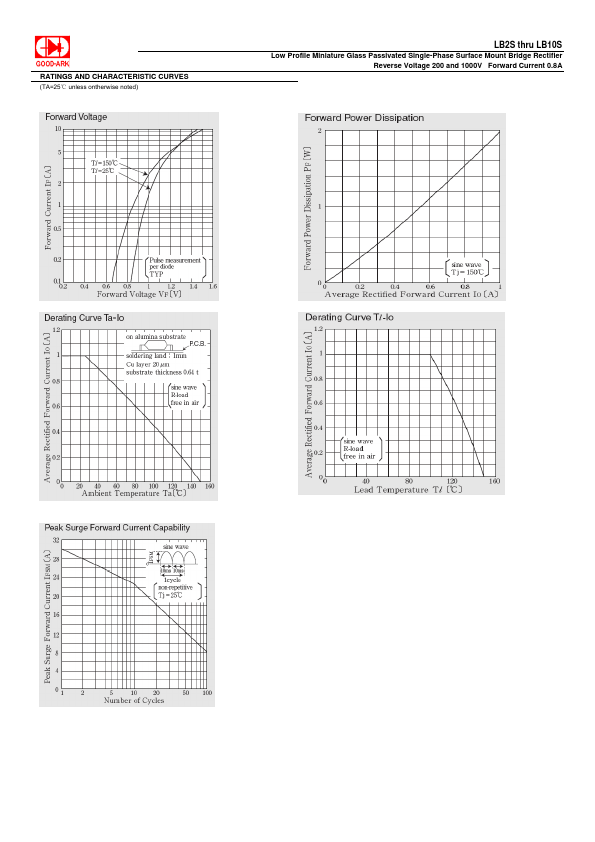

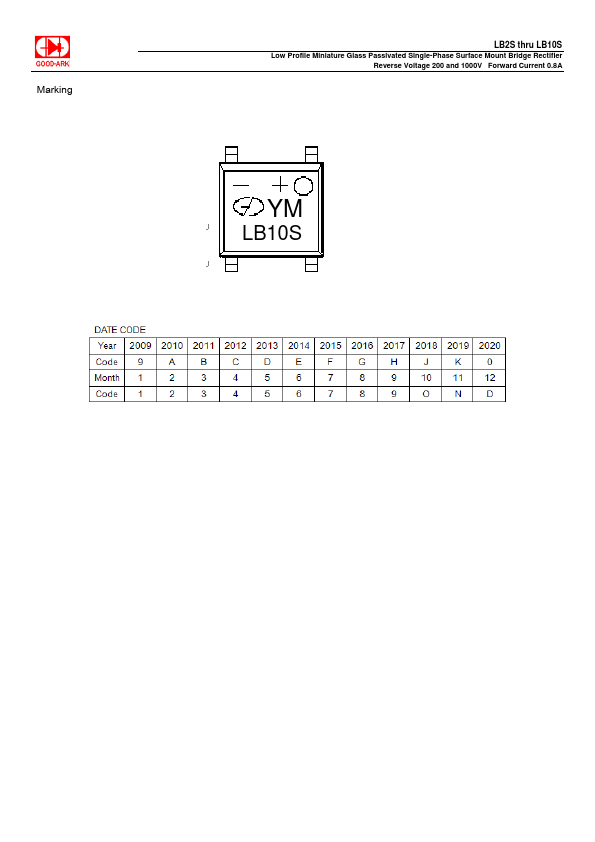

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LB2S
Manufacturer
GOODARK
File Size
195.91 KB
Datasheet
LB2S-GOODARK.pdf
Description
Low Profile Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier
