LB8S - Low Profile Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier

GOODARK

Datasheet Details

Part number: LB8S
Manufacturer: GOODARK
File Size: 191.09 KB
Datasheet: LB8S-GOODARK.pdf
Description: Low Profile Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier

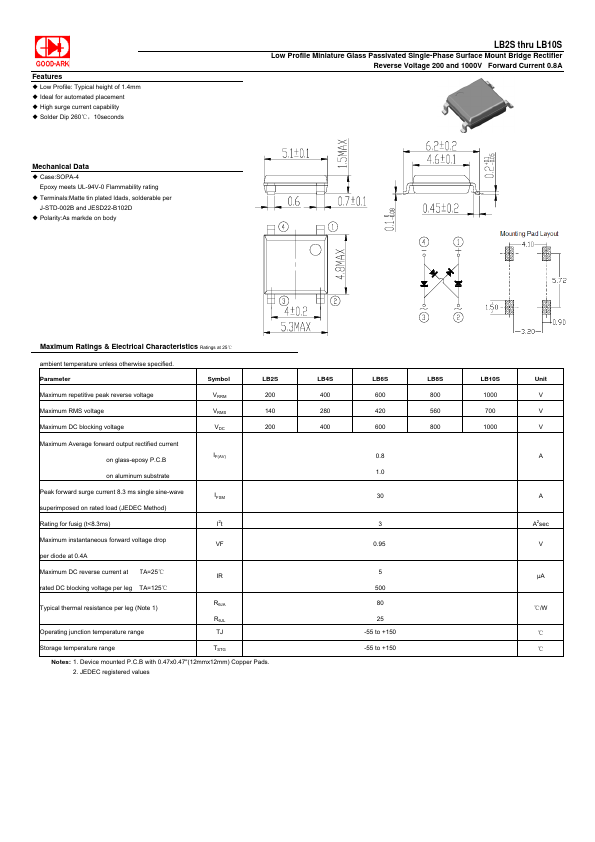

Low Profile: Typical height of 1.4mm.
Ideal for automated placement.
High surge current capability.
Solder Dip 260℃，10seconds Mechanical Data.
Case:SOPA-4 Epoxy meets UL-94V-0 Flammability rating.
Terminals:Matte tin plated ldads, solderable per J-STD-002B and JESD22-B102D.

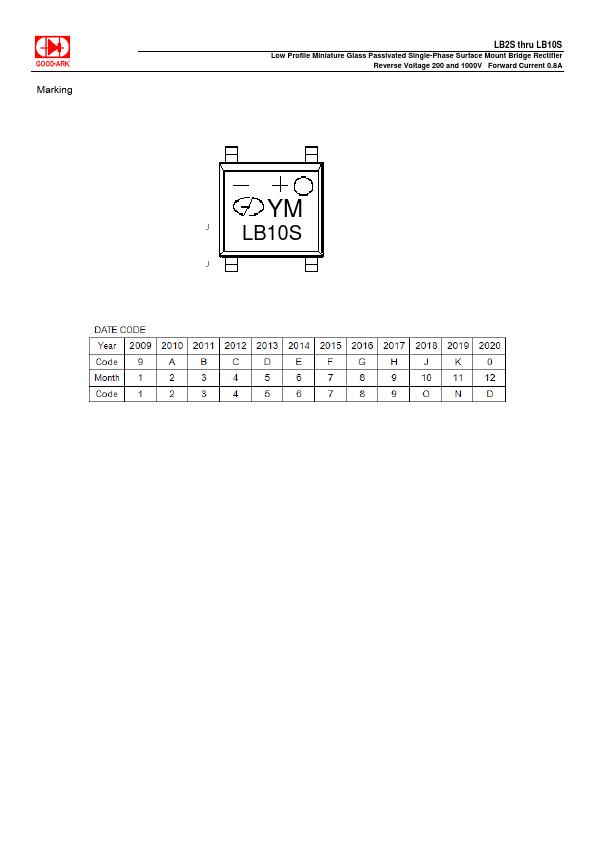

Polarity:As markde on body LB2S thru LB10S Low Profile Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier Reverse Voltage 200 and 1000V Forward Current 0.8A _ _.
