P300J, P300A 3.0 Amps General Purpose Plastic Rectifiers

GOODARK

Description

P300A thru P300M GOOD-ARK Electronics 3A,50-1000V Standard Rectifiers .
of changes Released Datasheet Modify document format www.

📥 Download Datasheet

P300J Datasheet Preview — This datasheet PDF includes multiple part numbers: P300J, P300A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: P300J, P300A
Manufacturer: GOODARK
File Size: 499.23 KB
Datasheet: P300A-GOODARK.pdf
Description: 3.0 Amps General Purpose Plastic Rectifiers
Note: This datasheet PDF includes multiple part numbers: P300J, P300A.
Please refer to the document for exact specifications by model.

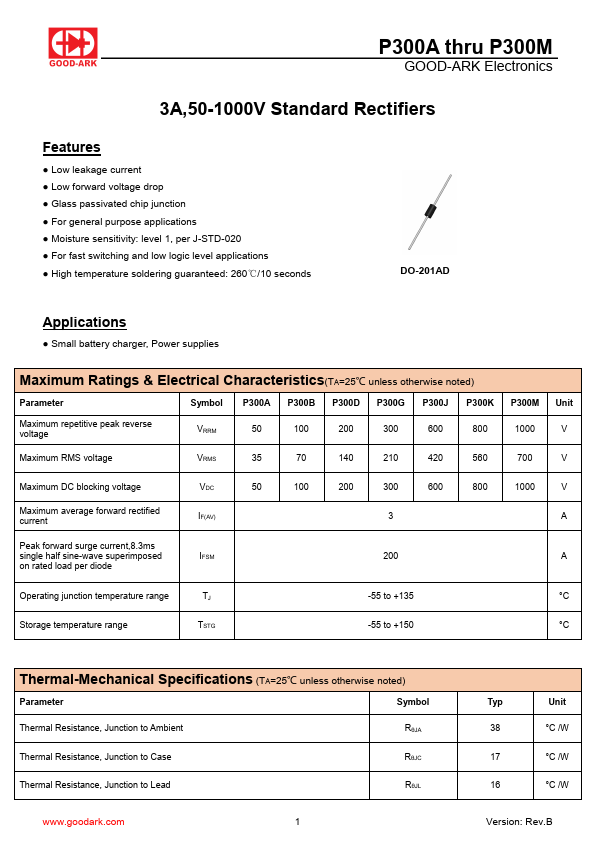

Features

* Low leakage current
* Low forward voltage drop
* Glass passivated chip junction

Applications

* Moisture sensitivity: level 1, per J-STD-020
* For fast switching and low logic level applications
* High temperature soldering guaranteed: 260℃/10 seconds DO-201AD Applications
* Small battery charger, Power supplies Maximum Ratings & Electrical Characteristics(TA=25℃ unless ot
