2SC1815 Datasheet - GOODWORK

2SC1815 NPN GENERAL PURPOSE SWITCHING TRANSISTOR

SOT-23 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts.

2SC1815 Features

* Ÿ NPN epitaxial silicon, planar design. Ÿ Collector-emitter voltage VCE=50V. Ÿ Collector current IC=0.15A. Ÿ Transition frequency fT>80MHz @ IC=1mAdc, VCE=10Vdc, f=30MHz. Ÿ In compliance with EU RoHS 2002/95/EC directives. MECHANICAL DATA Case: SOT-23, Plastic Terminals: Solderable per MIL-STD-750

2SC1815-GOODWORK.pdf

Preview of 2SC1815 PDF

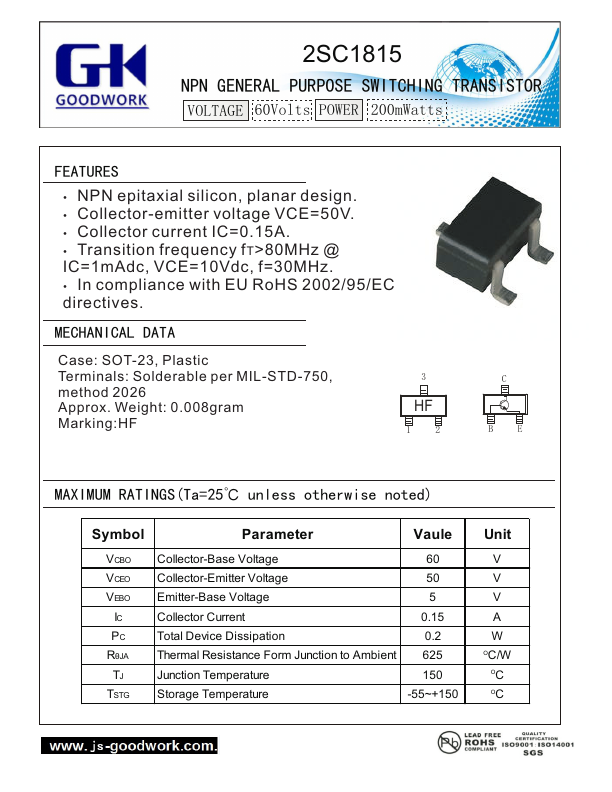

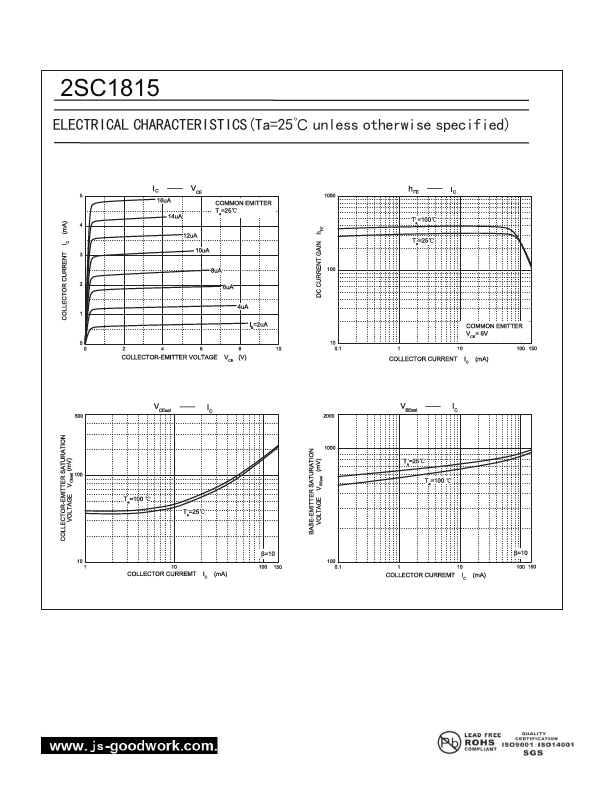

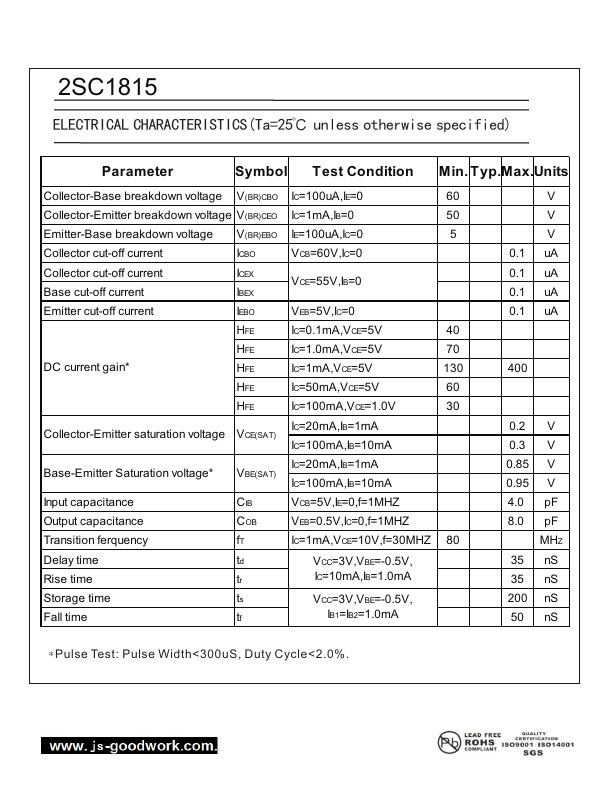

2SC1815 Datasheet Preview Page 2 2SC1815 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC1815

Manufacturer:

GOODWORK

File Size:

1.99 MB

Description:

Npn general purpose switching transistor.
