Part number:
IB2S
Manufacturer:
GOODWORK
File Size:
657.86 KB
Description:

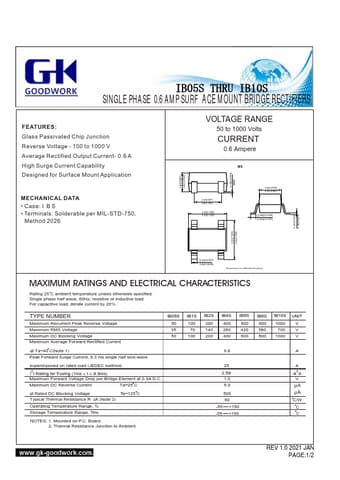

Single phase 0.6 amp surface mount bridge rectifiers.
* Glass Passivated Chip Junction Reverse Voltage - 100 to 1000 V Average Rectified Output Current- 0.6 A High Surge Current Capability Designed for Surface Mount Application MECHANICAL DATA
* Case: I B S
* Terminals: Solderable per MIL-STD-750, Method 2026 1.4(0.0551) 1.8(0.0709) VO
IB2S
GOODWORK
657.86 KB
Single phase 0.6 amp surface mount bridge rectifiers.
