U1660 Datasheet - GOSSEN METRAWATT

U1660 LON-Add-On Component Meter Reading Module

Meter reading module 8 inputs (S0) Article number U1660 GOSSEN METRAWATT GMBH 3 U1660 LON-Add-On Component Meter Reading Module Edited in Germany * Subject to change without notice * A pdf version is available on the internet GOSSEN METRAWATT GMBH Thomas-Mann-Str. 16-20 90471 Nü.

U1660 LON-Add-On Component Meter Reading Module 3-349-214-03 2/12.05 8 active S0 pulse inputs required pulse duration > 100 ms LED state display FTT-10A transceiver (78 kBit/s) Standard network variables for energy, instantaneous power and state LED status display QUALITY MANAGEMENT SYSTEM DQS certifizied per DIN EN ISO 9001 Reg. No.1262 Applications The LON add-on component is used for scanning measuring points within the energy control sys.

U1660-GOSSENMETRAWATT.pdf

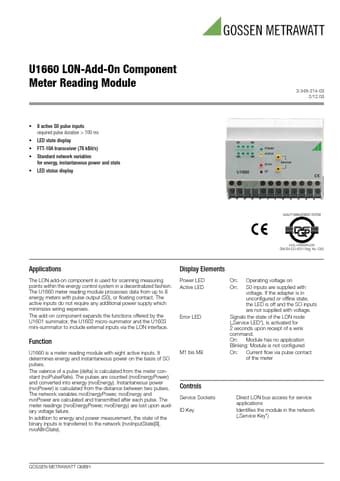

U1660 Datasheet Preview — Preview of U1660 PDF

Datasheet Details

Part number:

U1660

Manufacturer:

GOSSEN METRAWATT

File Size:

72.85 KB

Description:

Lon-add-on component meter reading module.
