MB356, MB3505 BRIDGE RECTIFIERS

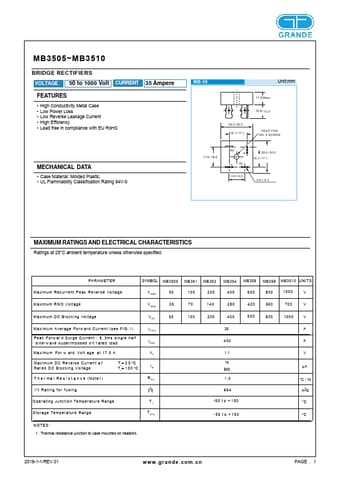

📥 Download Datasheet  Datasheet Preview Page 1

Description

MB3505~MB3510 BRIDGE RECTIFIERS VOLTAGE 50 to 1000 Volt CURRENT 35 Ampere .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MB356, MB3505. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MB356, MB3505
Manufacturer
GRANDE
File Size
517.32 KB
Datasheet
MB3505-GRANDE.pdf
Description
BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MB356, MB3505.
Please refer to the document for exact specifications by model.

Features

* High Conductivity Metal Case
* Low Power Loss
* Low Reverse Leakage Current
* High Efficiency
* Lead free in compliance with EU RoHS MECHANICAL DATA
* Case Material: Molded Plastic.
* UL Flammability Classification Rating 94V-0 MB-35 Unit:m
