EE1035R Power Transformers

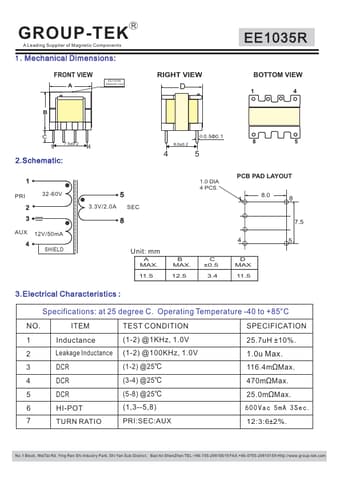

GROUP-TEK R A Leading Supplier of Magnetic Components 1.Mechanical Dimensions: FRONT VIEW A EE1035R GROUP-TEK RIGHT VIEW D B EE1035R BOTTOM VIEW 14 C 1 7.5±0.2 4 2.Schematic: 8.0±0.2 4 Φ0.5Φ0.1 5 1 PRI 2 3 32-60V AUX 12V/50mA 4 SHIELD 5 3.3V/2.0A SEC 8 1.0 DIA 4 PCS. Unit: mm A MAX. 11.5 B MAX. 12.5 C ±0.5 3.4 85 PCB PAD LAYOUT 1 8.0 8 4 D MAX 11.5 7.5 5 3.Electrical Characteristics : Specifications: at 25 degree C. Operating Temperature -40 to +85°С NO. ITEM TEST CON.

EE1035R-GROUP-TEK.pdf

EE1035R Datasheet Preview — This datasheet PDF includes multiple part numbers: EE1035R, EE1035R-GROUP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EE1035R, EE1035R-GROUP

Manufacturer:

GROUP-TEK

File Size:

31.90 KB

Description:

Power transformers.

Note:

This datasheet PDF includes multiple part numbers: EE1035R, EE1035R-GROUP.
Please refer to the document for exact specifications by model.
