EE4001R Power Transformers

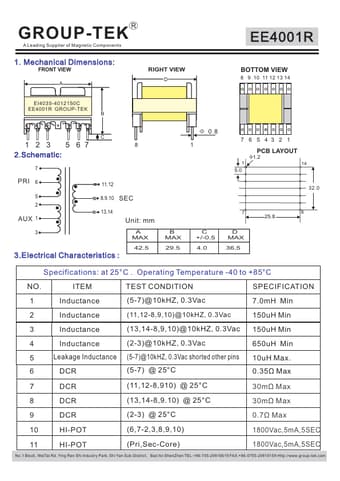

GROUP-TEK R A Leading Supplier of Magnetic Components 1.Mechanical Dimensions: FRONT VIEW A RIGHT VIEW D EE4001R BOTTOM VIEW 8 9 10 11 12 13 14 EI4035-4012150C EE4001R GROUP-TEK B 1 2 3 5 67 2.Schematic: C 8 7 PRI 6 11.12 5 2 AUX 1 8.9.10 SEC 13.14 Unit: mm 3A MAX 42.5 3.Electrical Characteristics : B MAX 29.5 Φ 0.8 1 7 6 5 43 2 1 PCB LAYOUT φ1.2 1 14 5.0 32.0 7 C +/-0.5 4.0 D MAX 36.5 25.8 8 Specifications: at 25°С . Operating Temperature -40 to +85°С NO. ITEM TEST CON.

EE4001R-GROUP-TEK.pdf

This datasheet PDF includes multiple part numbers: EE4001R, EE4001R-GROUP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EE4001R, EE4001R-GROUP

Manufacturer:

GROUP-TEK

File Size:

28.42 KB

Description:

Power transformers.

Note:

This datasheet PDF includes multiple part numbers: EE4001R, EE4001R-GROUP.
Please refer to the document for exact specifications by model.
