HST-18002DAR Datasheet, modules equivalent, GROUP-TEK

HST-18002DAR Features

  • Modules
  • Designed to meet IEEE 802.3 requirements.
  • Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,8mA .
  • LL:0.6uH Max @100KHz, 0.1V
  • Cww:120pF Max@100K

PDF File Details

Part number:

HST-18002DAR

Manufacturer:

GROUP-TEK

File Size:

151.95kb

Download:

📄 Datasheet

Description:

1000 base-t magnetics modules.

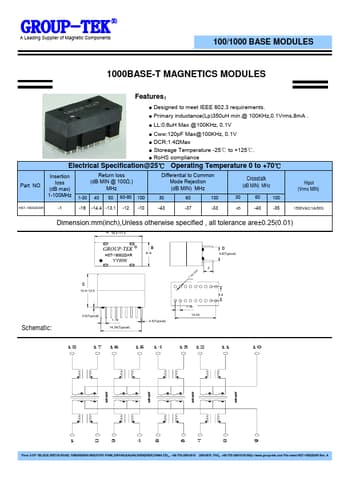

Datasheet Preview: HST-18002DAR 📥 Download PDF (151.95kb)
