HST-88020DR - 10/100/1000 BASE-TX VoIP MAGNETIC MODULE

This page provides the datasheet information for the HST-88020DR, a member of the HST-88019DR-GROUP 10/100/1000 BASE-TX VoIP MAGNETIC MODULE family.

Datasheet Summary

Features

  • Compliant with IEEE 802.3 standard for 1000 BASE-T.
  • Primary inductance(Lp)350uH min. @ 100KHz,0.1Vrms,8mA.
  • Designed for long haul gigabit Ethernet 1000 BASE-T, full duplex.

📥 Download Datasheet

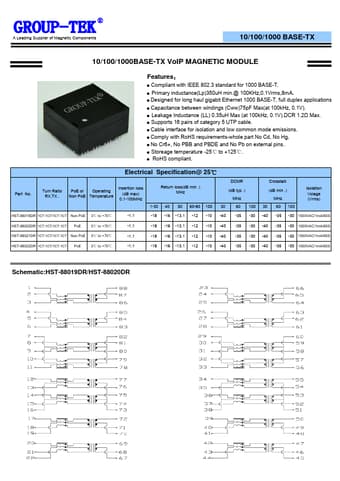

Datasheet preview – HST-88020DR

Datasheet Details

Part number HST-88020DR
Manufacturer GROUP-TEK
File Size 239.29 KB
Description 10/100/1000 BASE-TX VoIP MAGNETIC MODULE
Datasheet download datasheet HST-88020DR Datasheet
Additional preview pages of the HST-88020DR datasheet.

📁 Similar Datasheet

  • HST-0041SAR - 10/100Base-T TRANSFORMER (ETC)
  • HST-1025D - 10/100BASE-TX TRANSFORMER MODULES (ETC)
  • HST-1026D - 10/100BASE-TX TRANSFORMER MODULES (ETC)
  • HST-1027D - 10/100BASE-TX TRANSFORMER MODULES (ETC)
  • HST-1027S - 10/100BASE-TX TRANSFORMER MODULES (ETC)
  • HST-1028D - 10/100BASE-TX TRANSFORMER MODULES (ETC)
  • HST-1029D - 10/100BASE-TX TRANSFORMER MODULES (ETC)
  • HST-1601D - 10/100BASE TRANSFORMER (GROUP-TEK ELECTRONICS)
  • HST-18001DR - TRANSFORMER (GROUP-TEK ELECTRONICS)
  • HST-2051DR - TRANSFORMER (Wahsonic)
Other Datasheets by GROUP-TEK

Full PDF Text Transcription

Click to expand full text
® A Leading Supplier of Magnetic Components 10/100/1000 BASE-TX 10/100/1000BASE-TX VoIP MAGNETIC MODULE Features： ● Compliant with IEEE 802.3 standard for 1000 BASE-T. ● Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,8mA. ● Designed for long haul gigabit Ethernet 1000 BASE-T, full duplex applications ● Capacitance between windings (Cww)75pF Max(at 100kHz, 0.1V). ● Leakage Inductance (LL) 0.35uH Max (at 100kHz, 0.1V).DCR 1.2Ω Max. ● Supports 16 pairs of category 5 UTP cable. ● Cable interface for isolation and low common mode emissions. ● Comply with RoHS requirements-whole part No Cd, No Hg, ● No Cr6+, No PBB and PBDE and No Pb on external pins. ● Storeage temperature -25℃ to +125℃. ● RoHS compliant. Electrical Specification@ 25℃ Part No. Turn Ratio RX.TX .
