HST-88021DR Datasheet, Module, GROUP-TEK

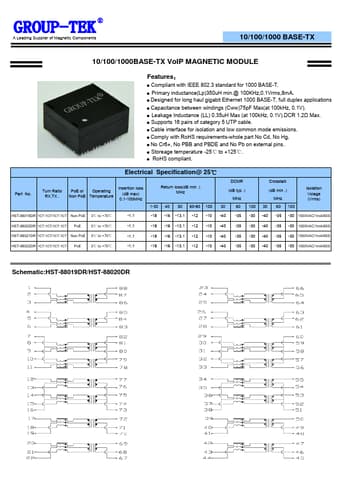

HST-88021DR Features

• Module
• Compliant with IEEE 802.3 standard for 1000 BASE-T.
• Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,8mA.
• Designed for long haul gigabit Ethernet 1000 BAS

PDF File Details

Part number:

HST-88021DR

Manufacturer:

GROUP-TEK

File Size:

239.29kb

Download:

📄 Datasheet

Description:

10/100/1000 base-tx voip magnetic module.

HST-88021DR Application

• Applications
• Capacitance between windings (Cww)75pF Max(at 100kHz, 0.1V).
• Leakage Inductance (LL) 0.35uH Max (at 100kHz, 0.1V).D

TAGS

HST-88021DR

GROUP-TEK
