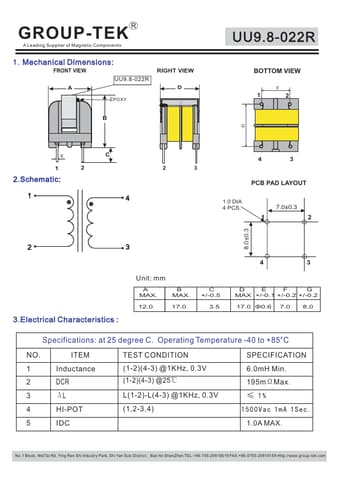

GROUP-TEK R A Leading Supplier of Magnetic Components 1.Mechanical Dimensions: FRONT VIEW UU9.8-022R A RIGHT VIEW D EPOXY B UU9.8-022R BOTTOM VIEW F 12 G E 1 2.Schematic: 1 2 C 4 23 43 PCB PAD LAYOUT 1.0 DIA 4 PCS.

7.0±0.3 12 8.0±0.3 23 3.Electrical Characteristics : Unit: mm A MAX.

B MAX.

12.0 17.0 C +/-0.5 3.5 43 DEF G MAX +/-0.1 +/-0.2 +/-0.2 17.0 Φ0.6 7.0 8.0 Specifications: at 25 degree C.

Operating Temperature -40 to +85°С NO.

ITEM TEST CONDITION SPECIFICATIO

UU9.8-022R-GROUP-TEK.pdf

This datasheet PDF includes multiple part numbers: UU9.8-022R, UU9.8-022R-GROUP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

UU9.8-022R, UU9.8-022R-GROUP

Manufacturer:

GROUP-TEK

File Size:

31.70 KB

Description:

Power transformers.

Note:

This datasheet PDF includes multiple part numbers: UU9.8-022R, UU9.8-022R-GROUP.
Please refer to the document for exact specifications by model.
