GS8342T08E-200 - 36Mb SigmaCIO DDR-II Burst SRAM

Download the GS8342T08E-200 datasheet PDF. This datasheet also covers the GS8342T08E variant, as both devices belong to the same 36mb sigmacio ddr-ii burst sram family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GS8342T08E_GSITechnology.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GS8342T08E-200
Manufacturer GSI Technology
File Size 2.33 MB
Description 36Mb SigmaCIO DDR-II Burst SRAM
Datasheet download datasheet GS8342T08E-200 Datasheet

General Description

Table Symbol SA NC R/W BW0 BW3 NW0 NW1 LD K K C C TMS TDI TCK TDO VREF ZQ DQ Doff CQ CQ VDD VDDQ VSS Note: NC = Not Connected to die or any other pin Description Synchronous Address Inputs No Connect Synchronous Read/Write Synchronous Byte Writes Nybble Write Control Pin Synchronous

Overview

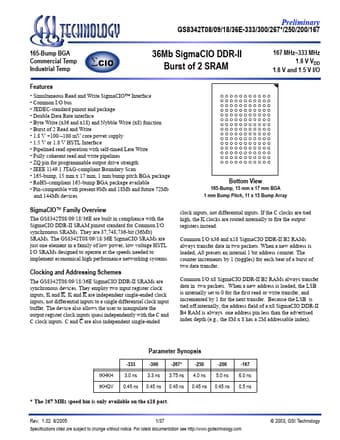

Preliminary GS8342T08/09/18/36E-333/300/267*/250/200/167 165-Bump BGA Commercial Temp Industrial.

Key Features

  • Simultaneous Read and Write SigmaCIO™ Interface.
  • Common I/O bus.
  • JEDEC-standard pinout and package.
  • Double Data Rate interface.
  • Byte Write (x36 and x18) and Nybble Write (x8) function.
  • Burst of 2 Read and Write.
  • 1.8 V +100/.
  • 100 mV core power supply.
  • 1.5 V or 1.8 V HSTL Interface.
  • Pipelined read operation with self-timed Late Write.
  • Fully coherent read and write pipelines.
  • ZQ pin for progra.
