GS8640Z36T-xxxV - 72Mb Pipelined and Flow Through Synchronous NBT SRAM

Download the GS8640Z36T-xxxV datasheet PDF. This datasheet also covers the GS8640Z18T-xxxV variant, as both devices belong to the same 72mb pipelined and flow through synchronous nbt sram family and are provided as variant models within a single manufacturer datasheet.

General Description

The GS8640Z18/36T-xxxV is a 72Mbit Synchronous Static SRAM.

Key Features

  • NBT (No Bus Turn Around) functionality allows zero wait read-write-read bus utilization; Fully pin-compatible with both pipelined and flow through NtRAM™, NoBL™ and ZBT™ SRAMs.
  • 1.8 V or 2.5 V core power supply.
  • 1.8 V or 2.5 V I/O supply.
  • User-configurable Pipeline and Flow Through mode.
  • LBO pin for Linear or Interleave Burst mode.
  • Pin compatible with 4Mb, 9Mb, 18Mb and 36Mb devices.
  • Byte write operation (9-bit Bytes).
  • 3 chi.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GS8640Z18T-xxxV_GSITechnology.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GS8640Z36T-xxxV
Manufacturer GSI Technology
File Size 434.25 KB
Description 72Mb Pipelined and Flow Through Synchronous NBT SRAM
Datasheet download datasheet GS8640Z36T-xxxV Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GS864272C-xxxV (GS8642xxB/C-xxxV) 4M x 18 2M x 36
GS8631 6-MHZ CMOS Rail-to-Rail I/O Opamps GAINSIL
GS8631N 6-MHZ CMOS Rail-to-Rail I/O Opamps GAINSIL
GS8631Y 6-MHZ CMOS Rail-to-Rail I/O Opamps GAINSIL
GS8632 6-MHZ CMOS Rail-to-Rail I/O Opamps GAINSIL

Other Datasheets by GSI Technology

Part Number Description
GS8640Z36T-167 72Mb Pipelined and Flow Through Synchronous NBT SRAM
GS8640Z36T-200 72Mb Pipelined and Flow Through Synchronous NBT SRAM
GS8640Z36T-250 72Mb Pipelined and Flow Through Synchronous NBT SRAM
GS8640Z36T-300 72Mb Pipelined and Flow Through Synchronous NBT SRAM
GS8640Z18T-167 72Mb Pipelined and Flow Through Synchronous NBT SRAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

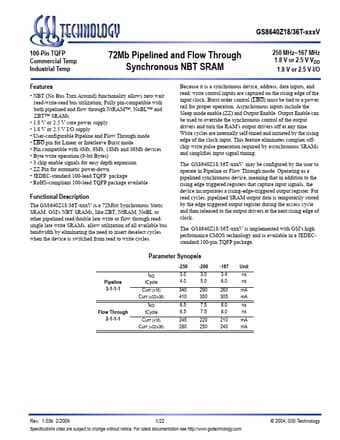

GS8640Z18/36T-xxxV 100-Pin TQFP Commercial Temp Industrial Temp 72Mb Pipelined and Flow Through Synchronous NBT SRAM 250 MHz–167 MHz 1.8 V or 2.5 V VDD 1.8 V or 2.5 V I/O Features • NBT (No Bus Turn Around) functionality allows zero wait read-write-read bus utilization; Fully pin-compatible with both pipelined and flow through NtRAM™, NoBL™ and ZBT™ SRAMs • 1.8 V or 2.5 V core power supply • 1.8 V or 2.
