GMCR100-6 - SENSITIVE GATE SILICON CONTROLLED RECTIFIERS REVERSE BLOCKING THYRISTORS

GTM CORPORATION

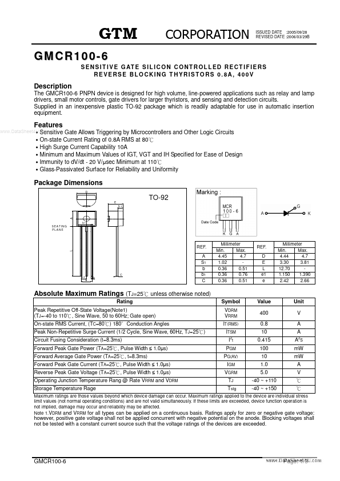

GMCR100-6 Datasheet Preview — Preview of GMCR100-6 PDF

Datasheet Details

Part number	GMCR100-6
Manufacturer	GTM CORPORATION
File Size	238.00 KB
Description	SENSITIVE GATE SILICON CONTROLLED RECTIFIERS REVERSE BLOCKING THYRISTORS
Datasheet	GMCR100-6_GTMCORPORATION.pdf

GMCR100-6 Product details

Description

S E N S I T I V E G AT E S I L I C O N C O N T R O L L E D R E C T I F I E R S REVERSE BLOCKING THYRISTORS 0.8A, 400V The GMCR100-6 PNPN device is designed for high volume, line-powered applications such as relay and lamp drivers, small motor controls, gate drivers for larger thyristors, and sensing and detection circuits.Supplied in an inexpensive plastic TO-92 package which is readily adaptable for use in automatic insertion equipment.www.DataSheet4U.com Sensitive

Features

Gate Allows Triggering by Microcontrollers and Other Logic Circuits On-state Current Rating of 0.8A RMS at 80 High Surge Current Capability 10A Minimum and Maximum Values of IGT, VGT and IH Specified for Ease of Design Immunity to dV/dt - 20 V/ sec Minimum at 110 Glass-Passivated Surface for Reliability and Uniformity Package Dimensions D E S1 TO-92 A S E A T IN G PLANE b1 L REF. A S1 b b1 C e1 e b C Millimeter Min. Max. 4.45 4.7 1.02 0.36 0.51 0.36 0.76 0.36 0.51 REF. D E L e1 e.
