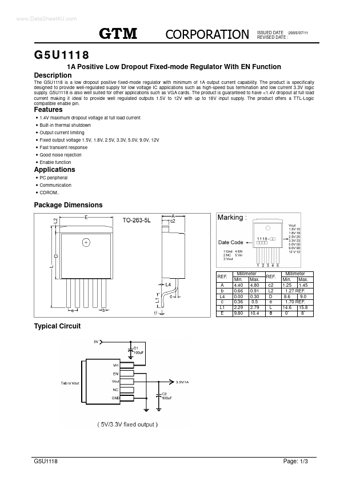

G5U1118 Datasheet, Regulator, GTM

G5U1118 Features

• Regulator 1.4V maximum dropout voltage at full load current Built-in thermal shutdown Output current limiting Fixed output voltage 1.5V, 1.8V, 2.5V, 3.3V, 5.0V, 9.0V, 12V Fast transient response

PDF File Details

Part number:

G5U1118

Manufacturer:

GTM

File Size:

244.23kb

Download:

📄 Datasheet

Description:

1a positive low dropout fixed-mode regulator. The G5U1118 is a low dropout positive fixed-mode regulator with minimum of 1A output current capability. The product is specifically

G5U1118 Application

• Applications such as high-speed bus termination and low current 3.3V logic supply. G5U1118 is also well suited for other applications such as VGA ca
