GJSBL1060CT, GJSBL1030CT - (GJSBL1030CT - GJSBL1060CT) SCHOTTKY BARRIER RECTIFIERS

GTM

Datasheet Details

Part number	GJSBL1060CT, GJSBL1030CT
Manufacturer	GTM
File Size	341.71 KB
Description	(GJSBL1030CT - GJSBL1060CT) SCHOTTKY BARRIER RECTIFIERS
Datasheet	GJSBL1030CT_GTM.pdf
Note	This datasheet PDF includes multiple part numbers: GJSBL1060CT, GJSBL1030CT. Please refer to the document for exact specifications by model.

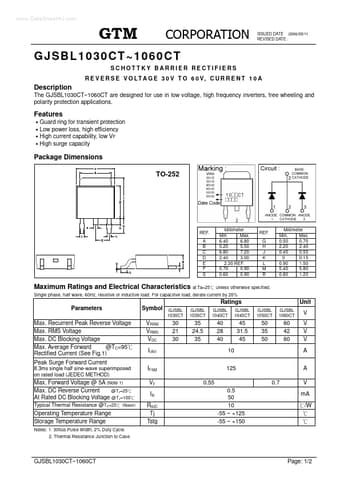

Guard ring for transient protection Low power loss, high efficiency High current capability, low VF High surge capacity Package Dimensions TO-252 REF. A B C D E F S Millimeter Min. Max. 6.40 6.80 5.20 5.50 6.80 7.20 2.40 3.00 2.30 REF. 0.70 0.90 0.60 0.90 REF. G H J K L M R Millimeter Min. Max. 0.50 0.70 2.20 2.40 0.45 0.55 0 0.15 0.90 1.50 5.40 5.80 0.80 1.20 Maximum Ratings and Electrical Characteristics at Ta=25 Parameters Max. Recurrent Peak Reverse Voltage Max. RMS Voltage Max. DC Bl.
