GSS4505 POWER MOSFET

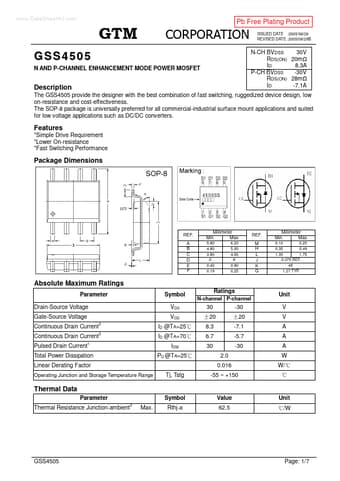

www.DataSheet4U.com Pb Free Plating Product ISSUED DATE :2005/08/29 REVISED DATE :2005/09/29B GSS4505 N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET The GSS4505 provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The SOP-8 package is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. Simple Drive Requirement Lo.

GSS4505 Features

* Package Dimensions REF. A B C D E F Millimeter Min. Max. 5.80 4.80 3.80 0 0.40 0.19 6.20 5.00 4.00 8 0.90 0.25 REF. M H L J K G Millimeter Min. Max. 0.10 0.25 0.35 0.49 1.35 1.75 0.375 REF. 45 1.27 TYP. Absolute Maximum Ratings Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drai
