GTZ817

photocoupler

GTZ817 Features

* : 1. (CTR: . 50% IF=5mA, VCE=5V) Current Conversion Ratio (Min 50% Working Condition IF=5mA, VCE=5V) 2. (VISO=5,000Vrms) Insulation Voltage = 5,000Vrms 3. (tr: TYP. 4μs VCE=2V, IC=2mA, RL=100 Ω) Response Time (tr: TYP. 4μs working condition VCE=2V, IC=2mA, RL=100 Ω) GTZ817

* (Instructions)

GTZ817 Datasheet (522.99 KB)

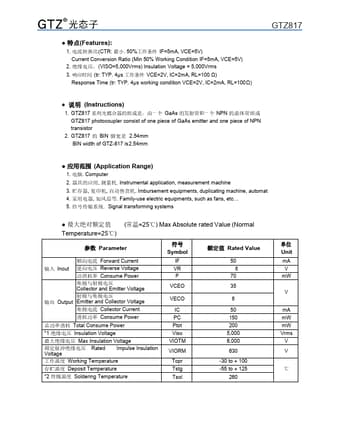

Preview of GTZ817 PDF

Datasheet Details

Part number:

GTZ817

Manufacturer:

GTZ

File Size:

522.99 KB

Description:

Photocoupler.
