QX1101 Datasheet - GUOXIN

QX1101 DVB-S Receiver IC

The GX1101P is a complete single-chip channel receiver for satellite television reception, which conforms to DVB-S standard (ETS 300 421). It consists of two A/D converters for I-input and Q-input, QPSK demodulator, and a forward error correction (FEC). It supports high speed scanning mode for blind.
Secret Distinction: DVB-S Receiver IC GX1101 family Products Specification HANGZHOU GUOXIN SCIENCE AND TECHNOLOGY CO.,LTD 2005. 2 V1.6 To: From: Page:52 Version:1.6 Free Datasheet http://www.datasheet4u.net/ GX1101 family CAUTION This document is preliminary and is subject to change. Contact a Guoxin Science, representative to determine if this is the current information on this device. The information contained in this document has been carefully checked and is believed to be reliabl.

QX1101 Features

* QPSK demodulator and FEC conform to EBU specification for DVB-S. High performance integrated 6-bit 90MHz dual-ADC. High speed scanning mode for blind symbol rate/code rate acquisition. Integrated PLL clock generation using external lo

QX1101 Datasheet (1.08 MB)

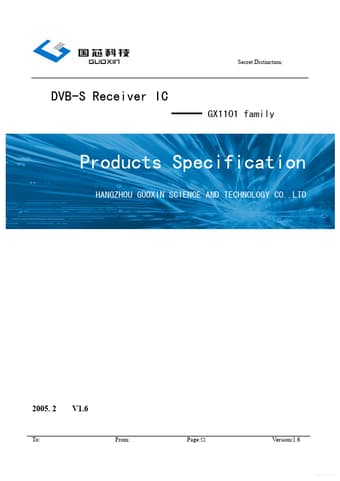

Preview of QX1101 PDF
QX1101 Datasheet Preview Page 2 QX1101 Datasheet Preview Page 3

Datasheet Details

Part number:

QX1101

Manufacturer:

GUOXIN

File Size:

1.08 MB

Description:

Dvb-s receiver ic.
