5KP250CA, 5KP5.0 5000 Watt Axial Lead TVS

5KP250CA Description

5KP SERIES 5000 WATT PEAK POWER TRANSIENT VOLTAGE SUPPRESSORS .

5KP250CA Features

* 5000 Watts Surge Capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time: Typically less than 1.0ps from 0 volt to BV min.
* Typical IR less than 1 A above 10V VOLTAGE RANGE 5.0 to 440 Volts 5000 Watts Peak Power R-6 .360(9.1) .340(8.6)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 5KP250CA, 5KP5.0. Please refer to the document for exact specifications by model.

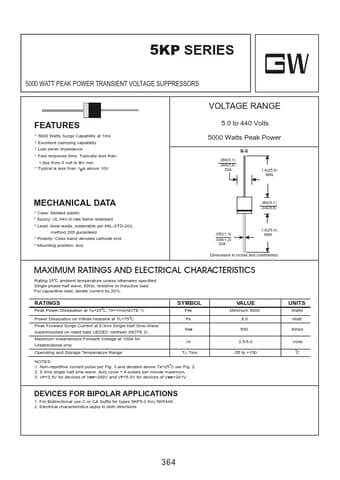

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
5KP250CA, 5KP5.0
Manufacturer
GW
File Size
72.13 KB
Datasheet
5KP5.0-GW.pdf
Description
5000 Watt Axial Lead TVS
Note
This datasheet PDF includes multiple part numbers: 5KP250CA, 5KP5.0.
Please refer to the document for exact specifications by model.
