RS5D, RS5A 5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIER

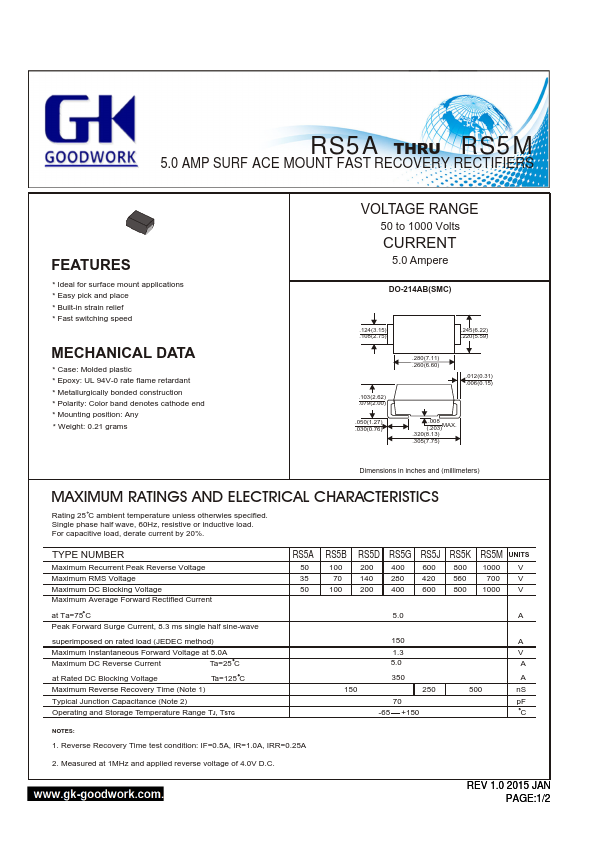

📥 Download Datasheet Datasheet Preview Page 1

Description

RS5A THRU RS5M 5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIERS .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS5D, RS5A. Please refer to the document for exact specifications by model.

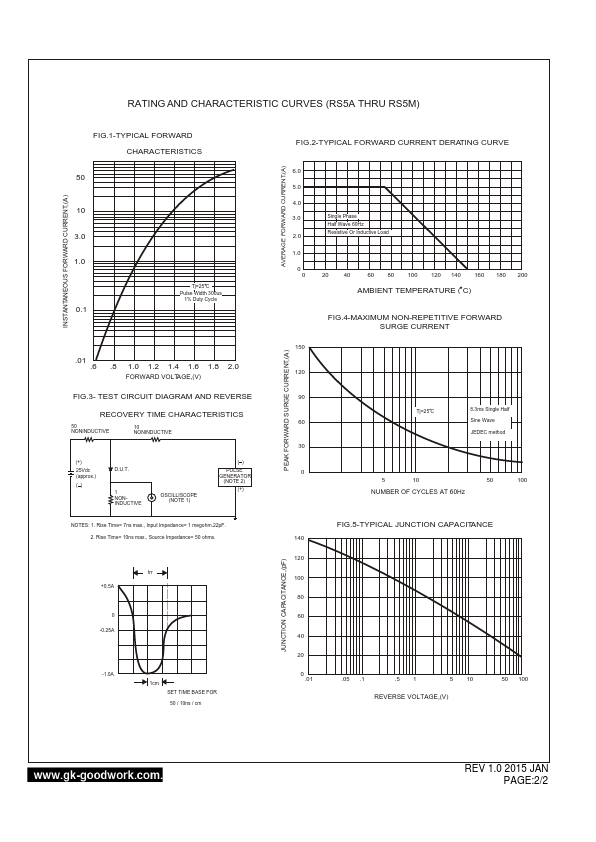

datasheet Preview Page 2

Datasheet Specifications

Part number
RS5D, RS5A
Manufacturer
GW
File Size
1.16 MB
Datasheet
RS5A-GW.pdf
Description
5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: RS5D, RS5A.
Please refer to the document for exact specifications by model.

Applications

* Easy pick and place
* Built-in strain relief
* Fast switching speed MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Metallurgically bonded construction
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight:
