SMF304C - 3.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS

This page provides the datasheet information for the SMF304C, a member of the SMF301C 3.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS family.

Datasheet Summary

Features

  • Ideal for surface mount.

📥 Download Datasheet

Datasheet preview – SMF304C

Datasheet Details

Part number SMF304C
Manufacturer GW
File Size 30.20 KB
Description 3.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS
Datasheet download datasheet SMF304C Datasheet

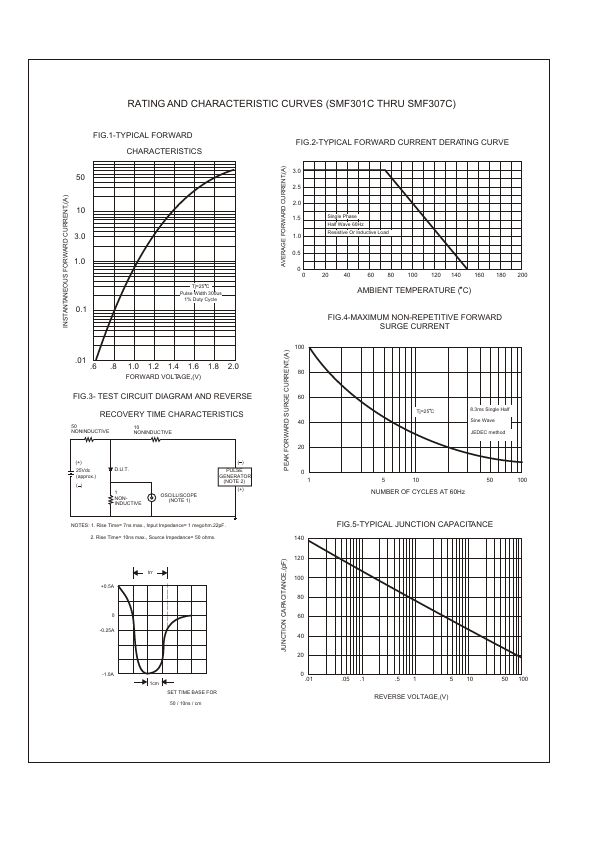

Additional preview pages of the SMF304C datasheet.

📁 Similar Datasheet

  • SMF304C - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • SMF304B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • SMF304B-C - 3.0 Amp High Efficiency Recovery Rectifiers (SeCoS)
  • SMF30 - SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (HY)
  • SMF301B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • SMF301B-C - 3.0 Amp High Efficiency Recovery Rectifiers (SeCoS)
  • SMF301C - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • SMF302B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • SMF302B-C - 3.0 Amp High Efficiency Recovery Rectifiers (SeCoS)
  • SMF302C - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
Other Datasheets by GW
  • SMF301C - 3.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS
  • SMF302C - 3.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS
  • SMF303C - 3.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS
  • SMF305C - 3.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS
  • SMF306C - 3.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS
  • SMF307C - 3.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS
  • SMF101A - 1.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS
  • SMF102A - 1.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS

Full PDF Text Transcription

Click to expand full text

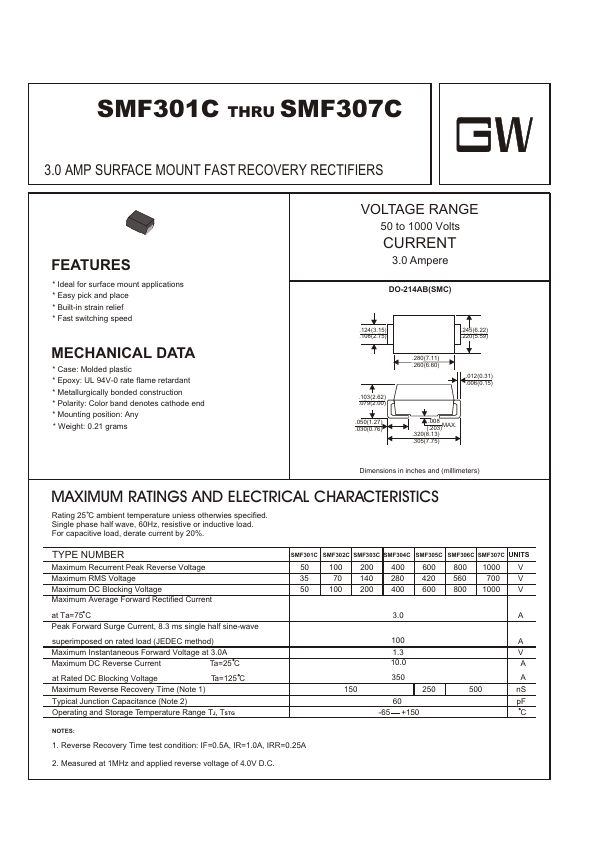

SMF301C THRU SMF307C 3.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS FEATURES * Ideal for surface mount applications * Easy pick and place * Built-in strain relief * Fast switching speed MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Metallurgically bonded construction * Polarity: Color band denotes cathode end * Mounting position: Any * Weight: 0.21 grams VOLTAGE RANGE 50 to 1000 Volts CURRENT 3.0 Ampere DO-214AB(SMC) .124(3.15) .108(2.75) .103(2.62) .079(2.00) .050(1.27) .030(0.76) .280(7.11) .260(6.60) .245(6.22) .220(5.59) .012(0.31) .006(0.15) (..020083)MAX. .320(8.13) .305(7.75) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified.
