SMT140CA, SMT5.0A 200 Watt Surface Mount TVS

SMT140CA Description

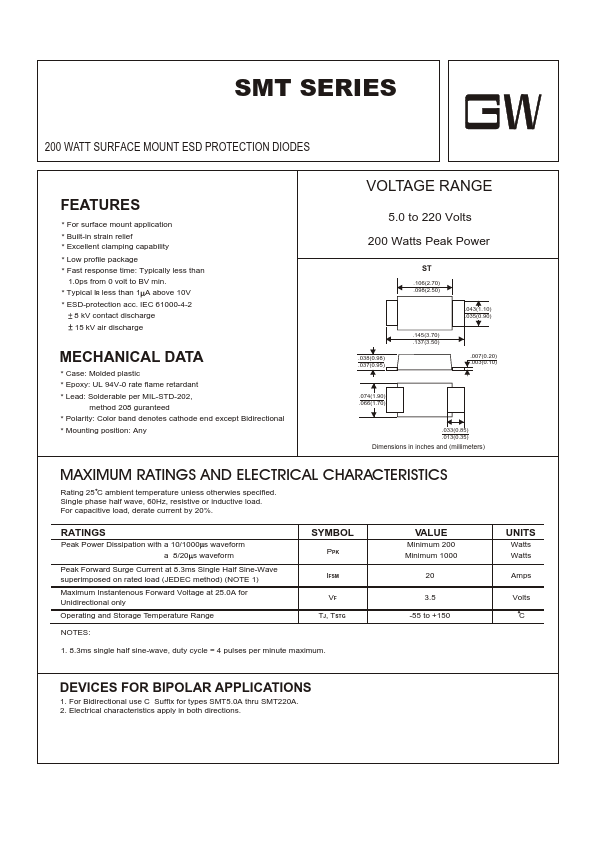

SMT SERIES 200 WATT SURFACE MOUNT ESD PROTECTION DIODES .

SMT140CA Applications

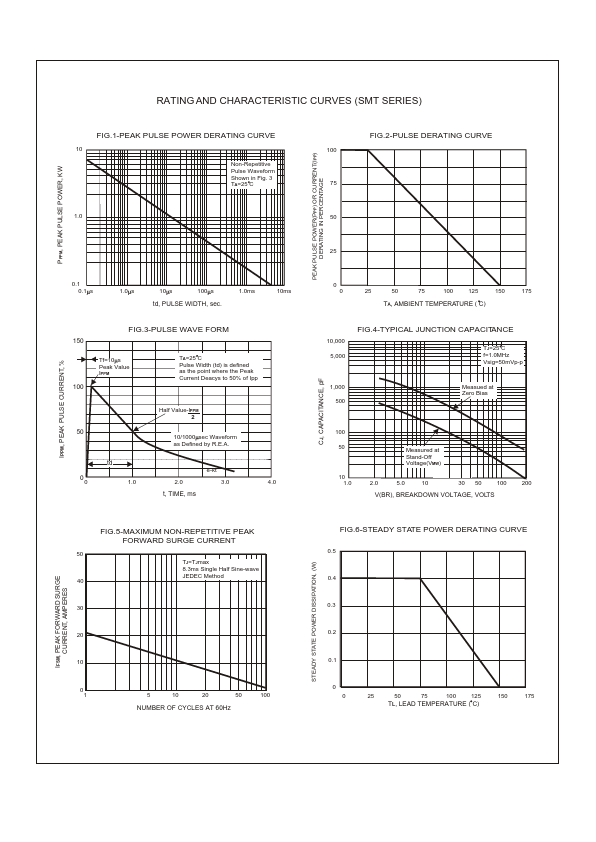

* 1. For Bidirectional use C Suffix for types SMT5.0A thru SMT220A. 2. Electrical characteristics apply in both directions. RATING AND CHARACTERISTIC CURVES (SMT SERIES) PEAK PULSE POWER(PPP) OR CURRENT(IPP) DERATING IN PERCENTAGE PPPM, PEAK PULSE POWER, KW FIG.1-PEAK PULSE POWER DERATING CURVE 10

📥 Download Datasheet

SMT140CA Datasheet Preview — This datasheet PDF includes multiple part numbers: SMT140CA, SMT5.0A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: SMT140CA, SMT5.0A
Manufacturer: GW
File Size: 137.65 KB
Datasheet: SMT5.0A-GW.pdf
Description: 200 Watt Surface Mount TVS
Note: This datasheet PDF includes multiple part numbers: SMT140CA, SMT5.0A.
Please refer to the document for exact specifications by model.
