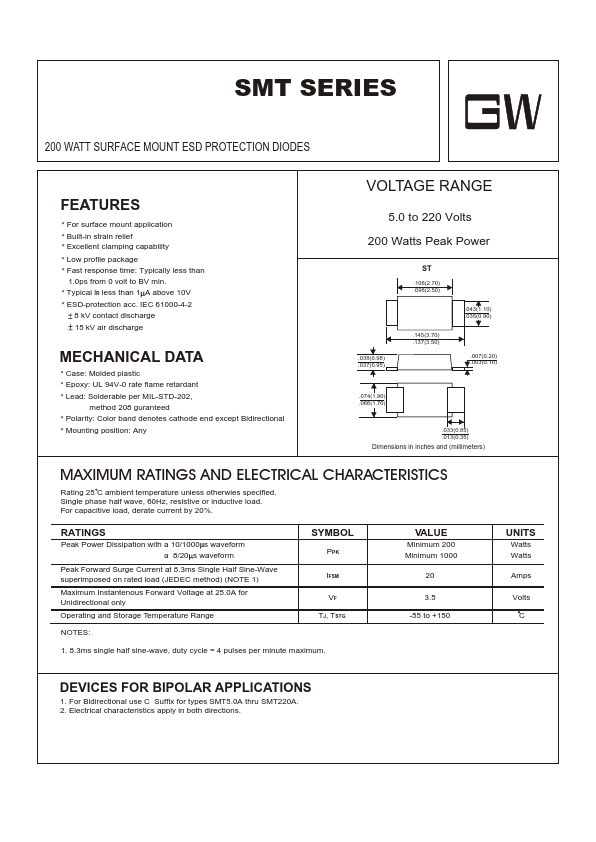

SMT220CA
FEATURES
- For surface mount application
- Built-in strain relief
- Excellent clamping capability
- Low profile package
- Fast response time: Typically less than
1.0ps from 0 volt to BV min.
- Typical IR less than 1 A above 10V
- ESD-protection acc. IEC 61000-4-2
8 k V contact discharge 15 k V air discharge
MECHANICAL DATA
- Case: Molded plastic
- Epoxy: UL 94V-0 rate flame retardant
- Lead: Solderable per MIL-STD-202, method 208 guranteed
- Polarity: Color band denotes cathode end except Bidirectional
- Mounting position: Any
VOLTAGE RANGE
5.0 to 220 Volts 200 Watts Peak Power
.038(0.98) .037(0.95)
.106(2.70) .098(2.50)
.145(3.70) .137(3.50)
.043(1.10) .035(0.90)
.007(0.20) .003(0.10)
.074(1.90) .066(1.70)
.033(0.85) .013(0.35) Dimensions in inches and (millimeters)

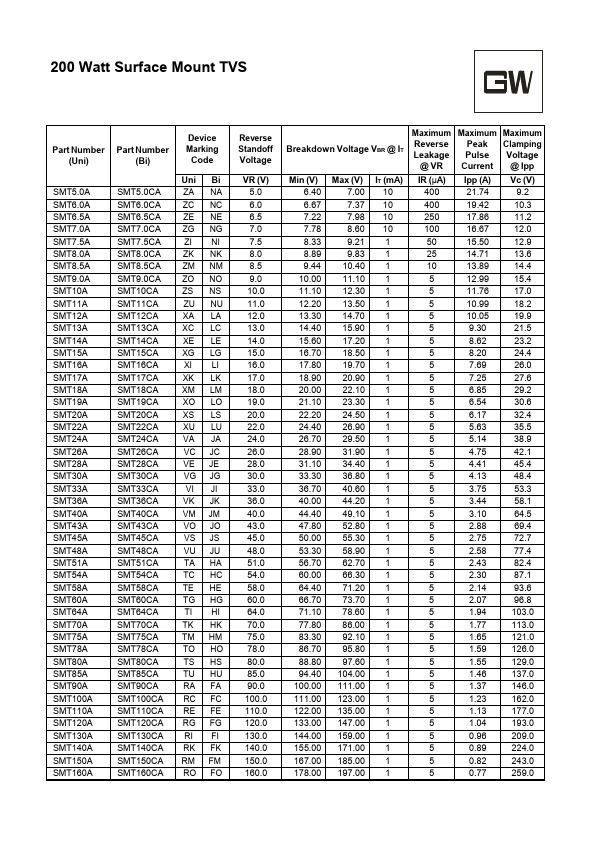

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by...
