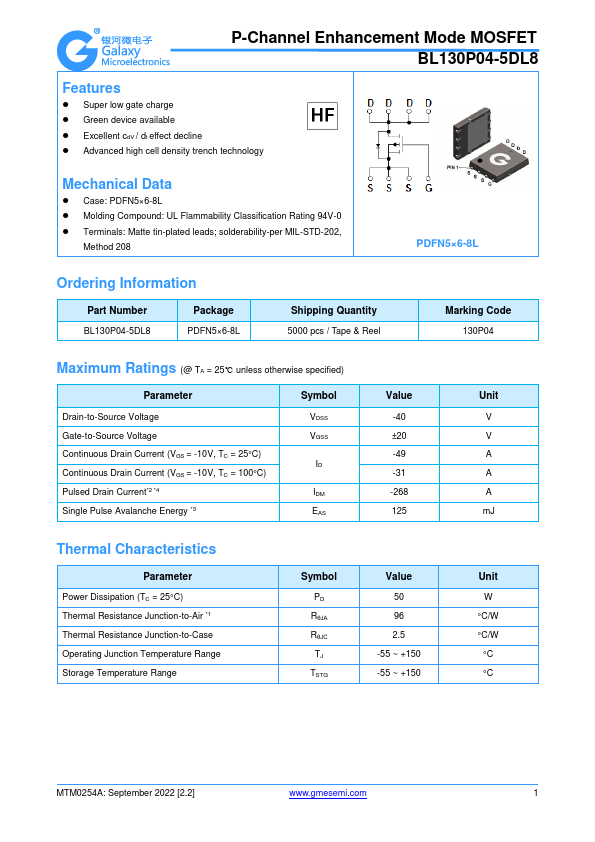

BL130P04-5DL8 - P-Channel Enhancement Mode MOSFET

Galaxy Microelectronics

Datasheet Details

Part number	BL130P04-5DL8
Manufacturer	Galaxy Microelectronics
File Size	627.61 KB
Description	P-Channel Enhancement Mode MOSFET
Datasheet	BL130P04-5DL8-GalaxyMicroelectronics.pdf

Super low gate charge.
Green device available.
Excellent cdV / dt effect decline.
Advanced high cell density trench technology Mechanical Data.
Case: PDFN5×6-8L.
Molding Compound: UL Flammability Classification Rating 94V-0.
Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 PDFN5×6-8L Ordering Information Part Number BL130P04-5DL8 Package PDFN5×6-8L Shipping Quantity 5000 pcs / Tape & Reel Marking Code 130P04 Maximum Ratings.
