TBL130P04-3DL8 - P-Channel Enhancement Mode MOSFET

Datasheet Summary

Features

  • Super low gate charge.
  • Green device available.
  • Excellent cdV / dt effect decline.
  • Advanced high cell density trench technology.
  • Halogen free.
  • Qualified to AEC-Q101 standards for high reliability Mechanical Data.
  • Case: PDFN3×3-8L.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 PDFN3×3-8L Ordering Information Part Number TBL130P04-3DL8 Package PDFN3×3-8L.

📥 Download Datasheet

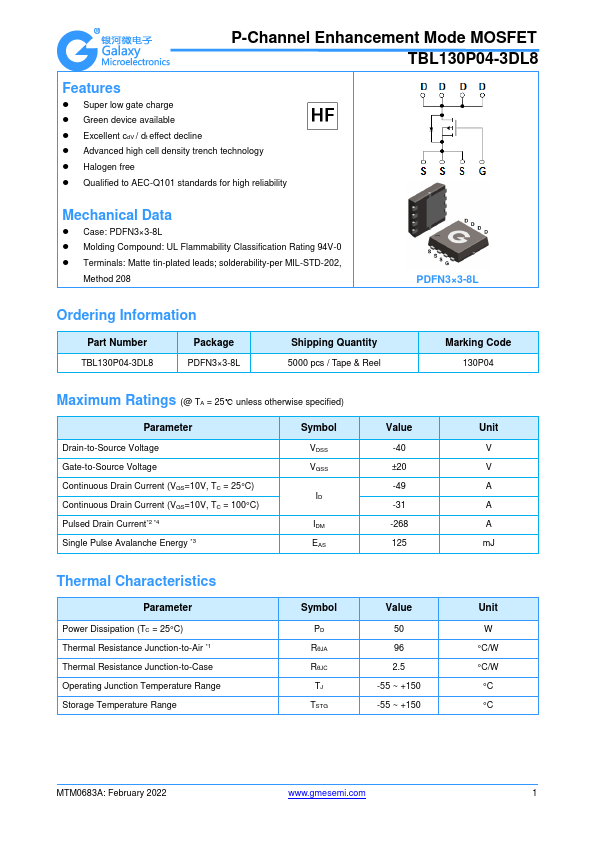

Datasheet preview – TBL130P04-3DL8

Datasheet Details

Part number TBL130P04-3DL8
Manufacturer Galaxy Microelectronics
File Size 589.62 KB
Description P-Channel Enhancement Mode MOSFET
Datasheet download datasheet TBL130P04-3DL8 Datasheet

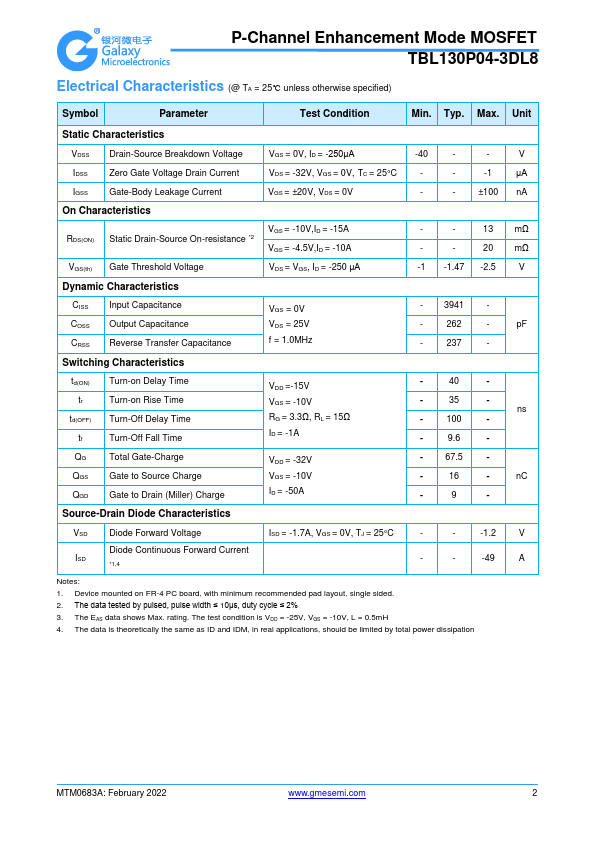

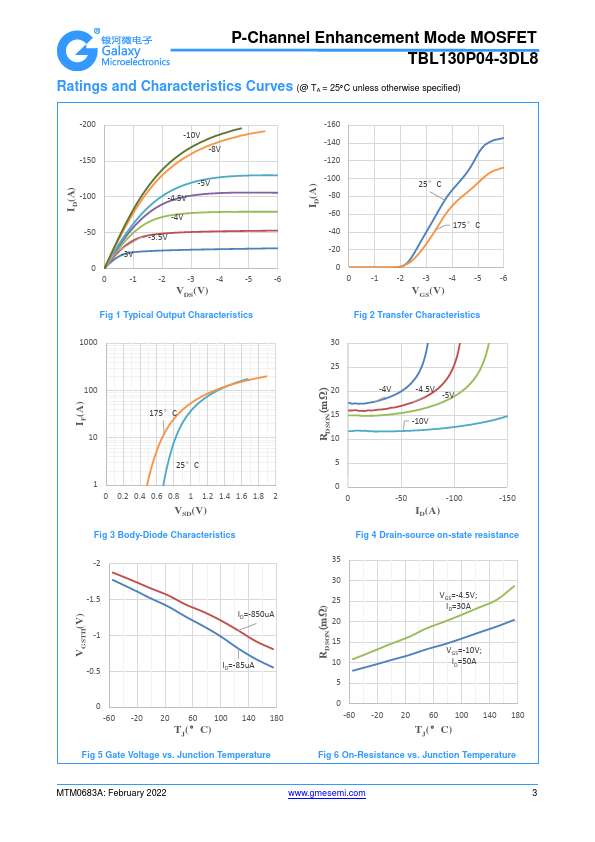

Additional preview pages of the TBL130P04-3DL8 datasheet.

📁 Similar Datasheet

  • TBL10 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL005 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL01 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL014N04T-5DL8 - N-Channel Enhancement Mode MOSFET (GME)
  • TBL02 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL03N06KC - N-Channel Enhancement Mode MOSFET (GME)
  • TBL04 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL050N10T-5DL8 - N-Channel Enhancement Mode MOSFET (GME)
  • TBL06 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL08 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
Other Datasheets by Galaxy Microelectronics

Full PDF Text Transcription

Click to expand full text
P-Channel Enhancement Mode MOSFET TBL130P04-3DL8 Features  Super low gate charge  Green device available  Excellent cdV / dt effect decline  Advanced high cell density trench technology  Halogen free  Qualified to AEC-Q101 standards for high reliability Mechanical Data  Case: PDFN3×3-8L  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 PDFN3×3-8L Ordering Information Part Number TBL130P04-3DL8 Package PDFN3×3-8L Shipping Quantity 5000 pcs / Tape & Reel Marking Code 130P04 Maximum Ratings (@ TA = 25℃ unless otherwise specified) Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (VGS=10V, TC = 25°C) Continuous Drain Current (VGS=10V, TC = 100°C) Pulsed D
