GM6603

PRECISION LINEAR REGULATORS

GM6603 Features

* Adjustable or Fixed Output Output Current of 3.0A Dropout Voltage (typical) 1.3V @ 3.0A Typical Line Regulation 0.015% Typical Load Regulation 0.05% Fast Transient Response Current Limit Protection Thermal Shutdown Protection Application Microprocessor Supply Post Regulators for Switching Supplies

GM6603 General Description

The GM6603 series of positive adjustable and fixed regulators are designed to provide 3.0A output with low dropout voltage performance. On-chip trimming adjusts the reference voltage to 2.0%. Put them to work in post regulators or microprocessor power supplies where low voltage operation and fast tr.

GM6603 Datasheet (173.50 KB)

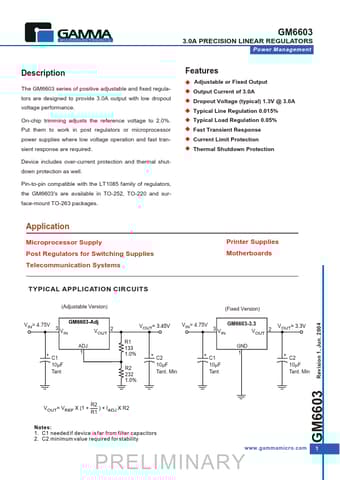

Preview of GM6603 PDF

Datasheet Details

Part number:

GM6603

Manufacturer:

Gamma

File Size:

173.50 KB

Description:

Precision linear regulators.
