BR34, BR305 Single Phase Glass Passivated Silicon Bridge Rectifier

GeneSiC

Description

Single Phase Glass Passivated Silicon Bridge Rectifier .

📥 Download Datasheet

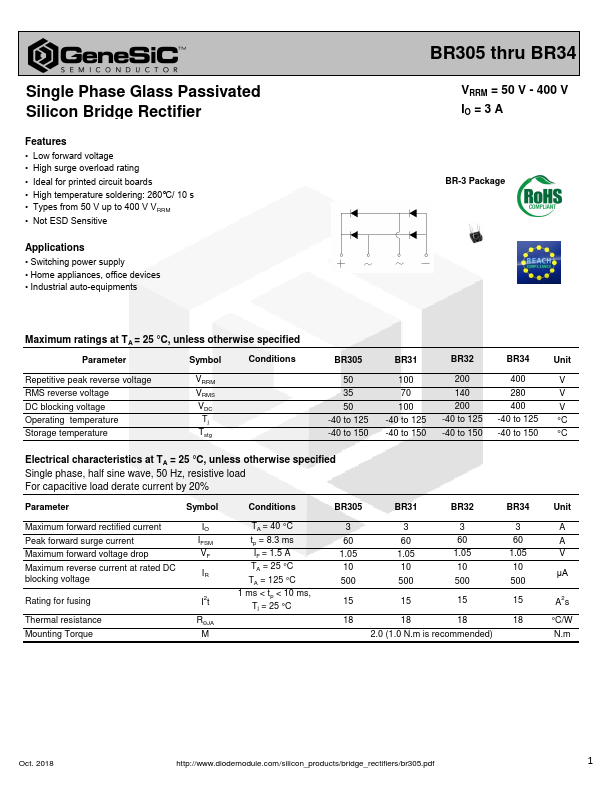

BR34 Datasheet Preview — This datasheet PDF includes multiple part numbers: BR34, BR305. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BR34, BR305
Manufacturer: GeneSiC
File Size: 1.27 MB
Datasheet: BR305-GeneSiC.pdf
Description: Single Phase Glass Passivated Silicon Bridge Rectifier
Note: This datasheet PDF includes multiple part numbers: BR34, BR305.
Please refer to the document for exact specifications by model.

Features

* Low forward voltage
* High surge overload rating
* Ideal for printed circuit boards
* High temperature soldering: 260⁰C/ 10 s
* Types from 50 V up to 400 V VRRM

Applications

* Switching power supply
* Home appliances, office devices
* Industrial auto-equipments BR305 thru BR34 VRRM = 50 V - 400 V IO = 3 A BR-3 Package Maximum ratings at TA = 25 °C, unless otherwise specified Parameter Symbol Conditions Repetitive peak reverse voltage RMS re
