Part number:
FR85K05
Manufacturer:
GeneSiC
File Size:
730.61 KB
Description:
Silicon fast recovery diode.
* High Surge Capability
* Types from 800 V to 1000 V VRRM

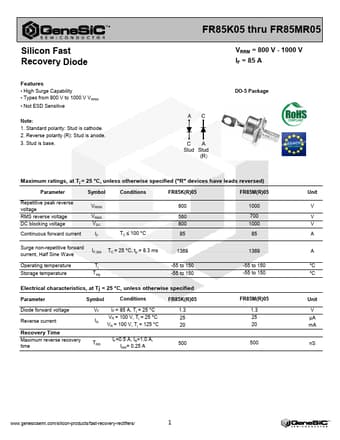

* Not ESD Sensitive Note: 1. Standard polarity: Stud is cathode. 2. Reverse polarity (R): Stud is anode. 3. Stud is base. FR85K05 thru FR85MR05 VRRM = 800 V - 1000 V IF = 85 A DO-5 Package Maximum ratings, at Tj = 25
FR85K05
GeneSiC
730.61 KB
Silicon fast recovery diode.
