S40VR - Silicon Standard Recovery Diode

Product Overview

GeneSiC

Part number	S40VR
Manufacturer	GeneSiC
File Size	775.09 KB
Description	Silicon Standard Recovery Diode
Datasheet	S40VR Datasheet
Note	This datasheet PDF includes multiple part numbers: S40VR, S40V. Please refer to the document for exact specifications by model.

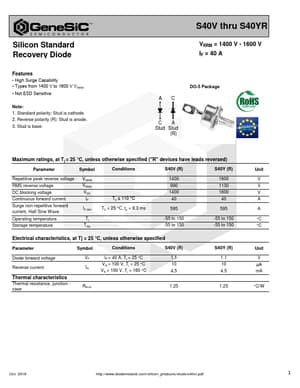

Additional preview pages of the S40VR datasheet.

High Surge Capability.
Types from 1400 V to 1600 V VRRM.
Not ESD Sensitive Note: 1. Standard polarity: Stud is cathode. 2. Reverse polarity (R): Stud is anode. 3. Stud is base. S40V thru S40YR VRRM = 1400 V - 1600 V IF = 40 A AC DO-5 Package CA Stud Stud (R) Maximum ratings, at Tj = 25 °C, unless otherwise specified ("R" devices have leads reversed) Parameter Symbol Conditions S40V (R) S40Y (R) Repetitive peak reverse voltage RMS reverse voltage DC blocking.
