1N5225 - ZENER DIODES

Product Overview

General Semiconductor

Part number	1N5225
Manufacturer	General Semiconductor
File Size	74.60 KB
Description	ZENER DIODES
Datasheet	1N5225 Datasheet

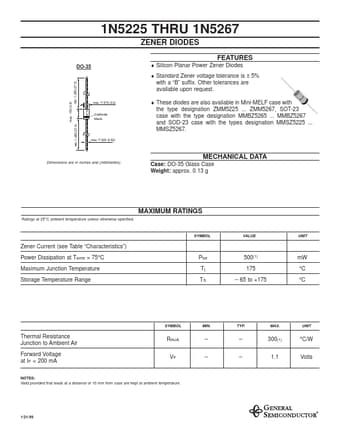

Additional preview pages of the 1N5225 datasheet.

DO-35 min. 1.083 (27.5).
Silicon Planar Power Zener Diodes.
Standard Zener voltage tolerance is ± 5% with a “B” suffix. Other tolerances are available upon request. max. ∅.079 (2.0) Cathode Mark min. 1.083 (27.5).
These diodes are also available in Mini-MELF case with the type designation ZMM5225 ZMM5267, SOT-23 case with the type designation MMBZ5265 MMBZ5267 and SOD-23 case with the types designation MMSZ5225 MMSZ5267. max. .150 (3.8) max. ∅.020 (0.52) MECHA.
