1N5399 Datasheet GENERAL PURPOSE PLASTIC RECTIFIER

Manufacturer: General Semiconductor (now Vishay)

📥 Download Datasheet

1N5399 general purpose plastic rectifier by General Semiconductor (now Vishay) - Datasheet Preview

Datasheet Details

Part number	1N5399
Manufacturer	General Semiconductor (now Vishay)
File Size	45.59 KB
Description	GENERAL PURPOSE PLASTIC RECTIFIER
Download	1N5399 Download (PDF)

Overview

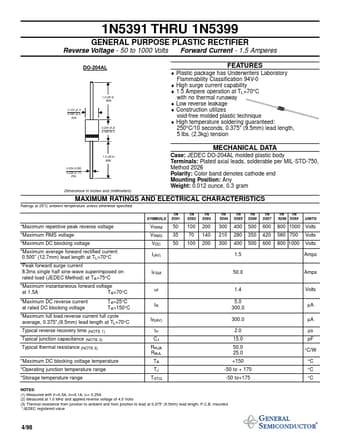

1N5391 THRU 1N5399 GENERAL PURPOSE PLASTIC RECTIFIER Reverse Voltage - 50 to 1000 Volts DO-204AL Forward Current - 1.

Key Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High surge current capability.
1.5 Ampere operation at TL=70°C with no thermal runaway.
Low reverse leakage.
Construction utilizes void-free molded plastic technique.
High temperature soldering guaranteed: 250°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension 1.0 (25.4) MIN. 0.107 (2.7) 0.080 (2.0) DIA. 0.205 (5.2) 0.160 (4.1).
