B125C1500G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Product Overview

General Semiconductor

Part number	B125C1500G
Manufacturer	General Semiconductor
File Size	146.14 KB
Description	GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Datasheet	B125C1500G Datasheet

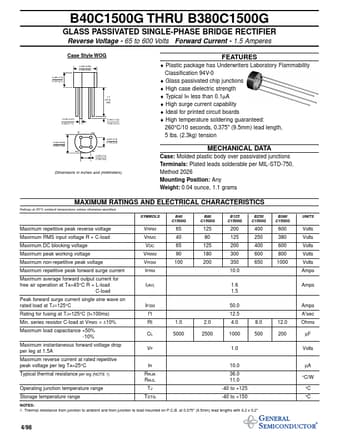

Additional preview pages of the B125C1500G datasheet.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated chip junctions.
High case dielectric strength.
Typical IR less than 0.1µA.
High surge current capability.
Ideal for printed circuit boards.
High temperature soldering guaranteed: 260°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension 1.0 (25.4) MIN. 0.032 (0.81) 0.028 (0.71) 0.060 (1.52) 0.020 (0.51) 0.220 (5.6) 0.348 (8.
