B380C800G GLASS PASSIVATED SINGLE - PHASE BRIDGE RECTIFIER

B380C800G Description

B40C800G THRU B380C800G GLASS PASSIVATED SINGLE - PHASE BRIDGE RECTIFIER Reverse Voltage - 65 to 600 Volts Forward Current - 0.9 Ampere .

B380C800G Features

* Case Style WOG 0.388 (9.86) 0.348 (8.84) 0.220 (5.6) 0.160 (4.1) 1.0 (25.4) MIN. 0.032 (0.81) 0.028 (0.71) 0.060 (1.52) 0.020 (0.51)
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Glass passivated chip junctions
* High case dielectric st

📥 Download Datasheet

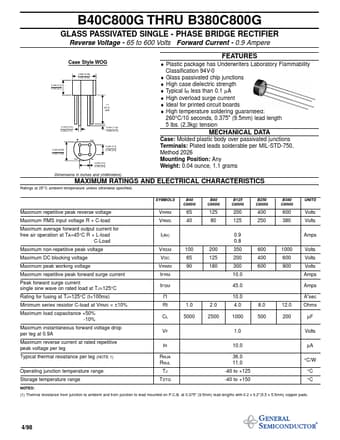

Preview of B380C800G PDF
datasheet Preview Page 2

Datasheet Details

Part number
B380C800G
Manufacturer
General Semiconductor
File Size
124.33 KB
Datasheet
B380C800G_GeneralSemiconductor.pdf
Description
GLASS PASSIVATED SINGLE - PHASE BRIDGE RECTIFIER
