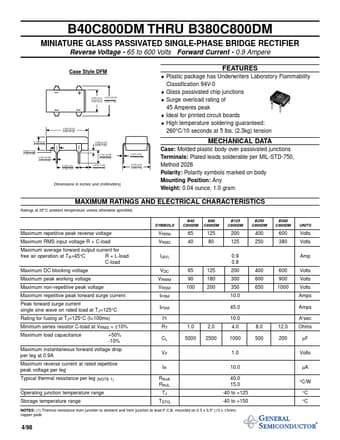

B40C800DM - MINIATURE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

General Semiconductor

Datasheet Details

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated chip junctions.
Surge overload rating of 45 Amperes peak.
Ideal for printed circuit boards.
High temperature soldering guaranteed: 260°C/10 seconds at 5 lbs. (2.3kg) tension 0.255 (6.5) 0.315 (8.00) 0.245 (6.2) 0.285 (7.24) 0.335 (8.51) 0.320 (8.12) 0.130 (3.3) 0.120 (3.05) 0.045 (1.14) 0.035 (0.89) 0.023 (0.58) 0.018 (0.46) 0.205 (5.2) 0.195 (5.0) 0.0.
