BA782 - Bandswitching Diodes

Name: BA782
SKU: BA782-179257

General Semiconductor

The BA782 by General Semiconductor is a Bandswitching Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	BA782
Manufacturer	General Semiconductor
File Size	81.80 KB
Description	Bandswitching Diodes
Datasheet	BA782_GeneralSemiconductor.pdf

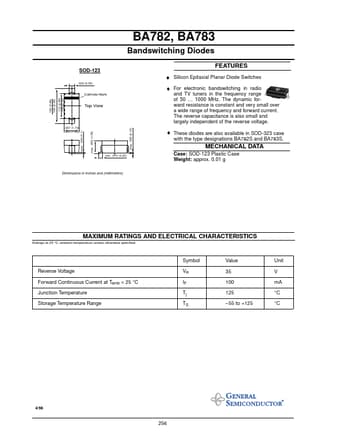

Additional preview pages of the BA782 datasheet.

Silicon Epitaxial Planar Diode Switches.
For electronic bandswitching in radio and TV tuners in the frequency range of 50 … 1000 MHz. The dynamic forward resistance is constant and very small over a wide range of frequency and forward current. The reverse capacitance is also small and largely independent of the reverse voltage. with the type designations BA782S and BA783S. Cathode Mark .152 (3.85) .140 (3.55) .112 (2.85) .100 (2.55) Top View max. .006 (0.15) max. .004 (0.1.
