BZT52-C3V6 - ZENER DIODES

Name: BZT52-C3V6
SKU: BZT52-C3V6-114634

General Semiconductor

The BZT52-C3V6 by General Semiconductor is a ZENER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	BZT52-C3V6
Manufacturer	General Semiconductor
File Size	387.00 KB
Description	ZENER DIODES
Datasheet	BZT52-C3V6_GeneralSemiconductor.pdf

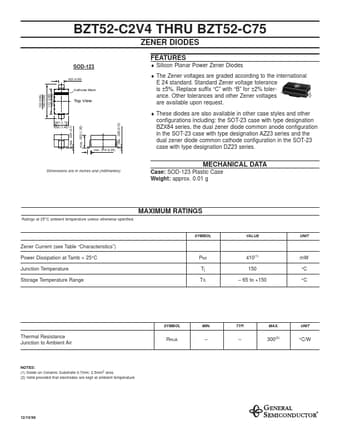

Additional preview pages of the BZT52-C3V6 datasheet.

SOD-123 .022 (0.55).
Silicon Planar Power Zener Diodes.
The Zener voltages are graded according to the international E 24 standard. Standard Zener voltage tolerance is ±5%. Replace suffix “C” with “B” for ±2% tolerance. Other tolerances and other Zener voltages are available upon request.
These diodes are also available in other case styles and other configurations including: the SOT-23 case with type designation BZX84 series, the dual zener diode common anode config.
